10-Gigabit SFP+ ports. Figure 82 on page 222 shows QFX5100-24Q switches as the primary and

backup cabled in a ring to QFX3500 and QFX3600 switches.

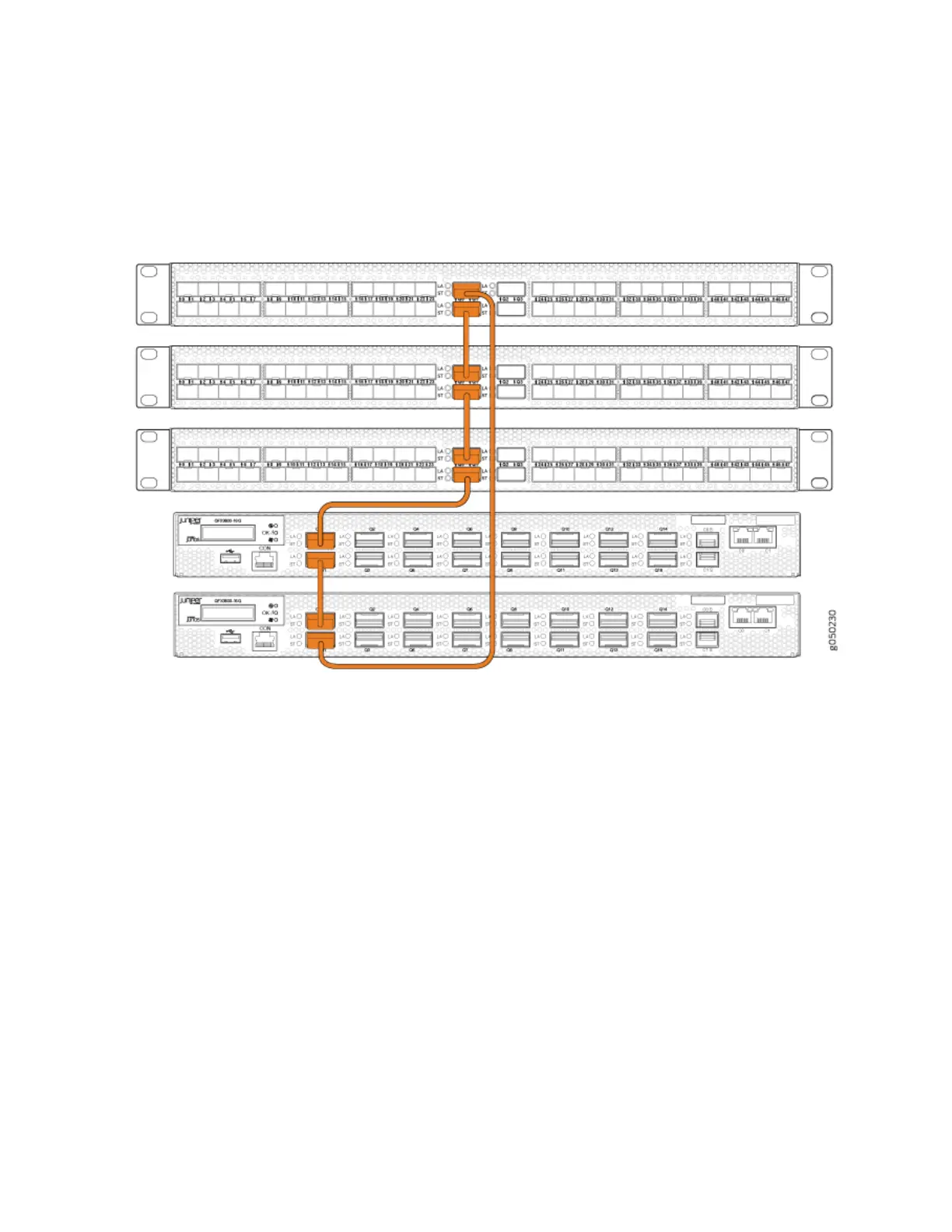

Figure 80: QFX3500 and QFX3600 Mixed Using the 40G Ports as the VCPs

220
