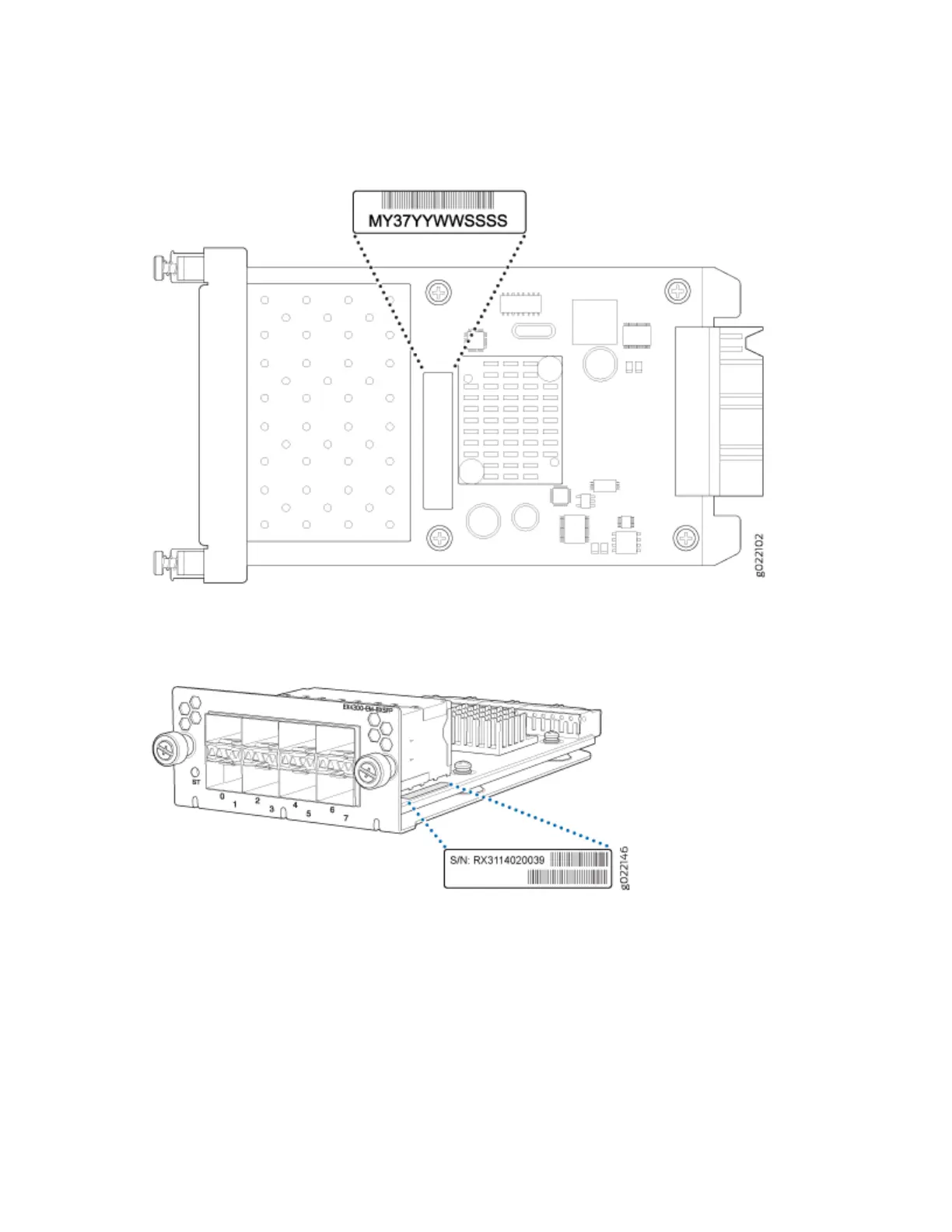

Figure 111: Locaon of the Serial Number ID Label on the 4-Port SFP+ Uplink Module for EX4300

Switches Except EX4300-48MP and EX4300-48MP-S Switches

Figure 112: Locaon of the Serial Number ID Label on the 8-Port SFP+ Uplink Module

352
