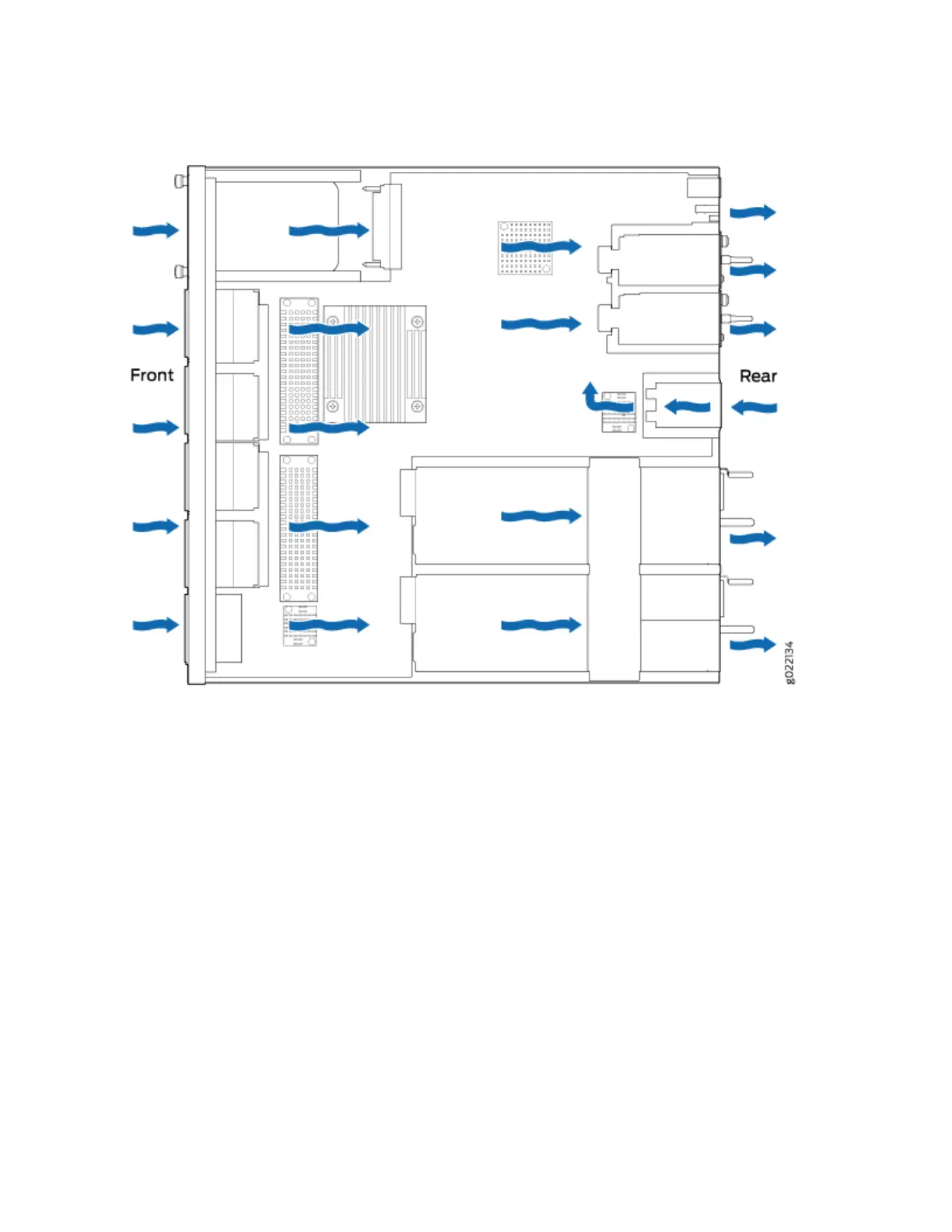

Figure 40: Front-to-Back Airow Through 32-Port EX4300 Switch Chassis

You must install only power supplies that have AIR OUT (AFO) labels in switches in which the fan

modules have AIR OUT (AFO) labels.
