5.2.11.1. Charging power unit
1. Terminate the Ethernet cable wires with the RJ45 connectors.
•
The connector wiring scheme is standard T-568B.
NOTE
The Ethernet cable is not included in the delivery.

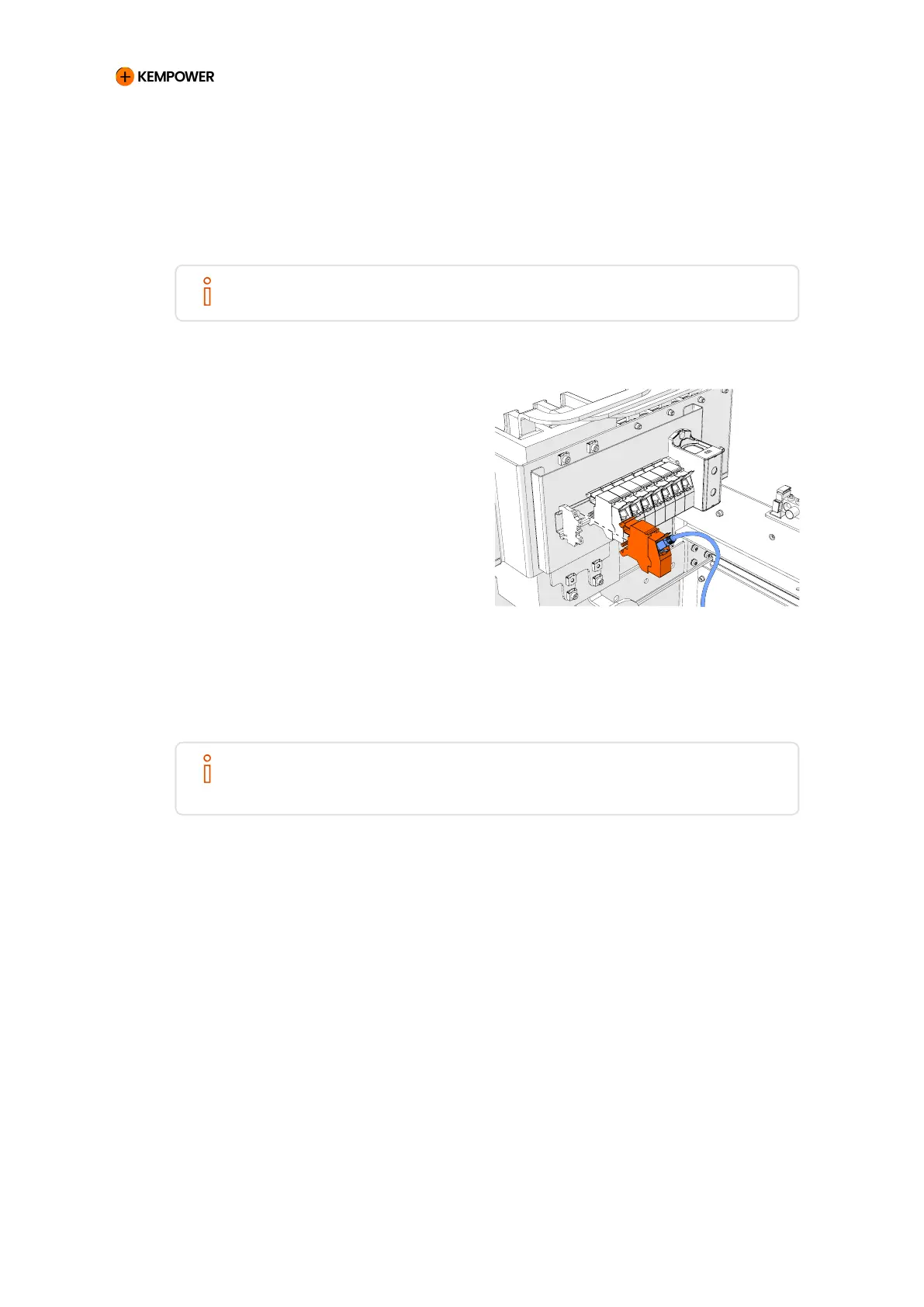

2. Install the Ethernet terminal
block(s) on the DIN rail behind
the charging power unit's main
switch.
3. Connect the Ethernet cable from each Satellite to the Ethernet
terminal block of the charging power unit using the RJ45 connector.
NOTE
Make sure that the cables are clearly labelled. This helps with later
troubleshooting.
4.
Install the extension Ethernet cable to the Ethernet terminal block.
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 96 REV 2.40 EN 04-2024
