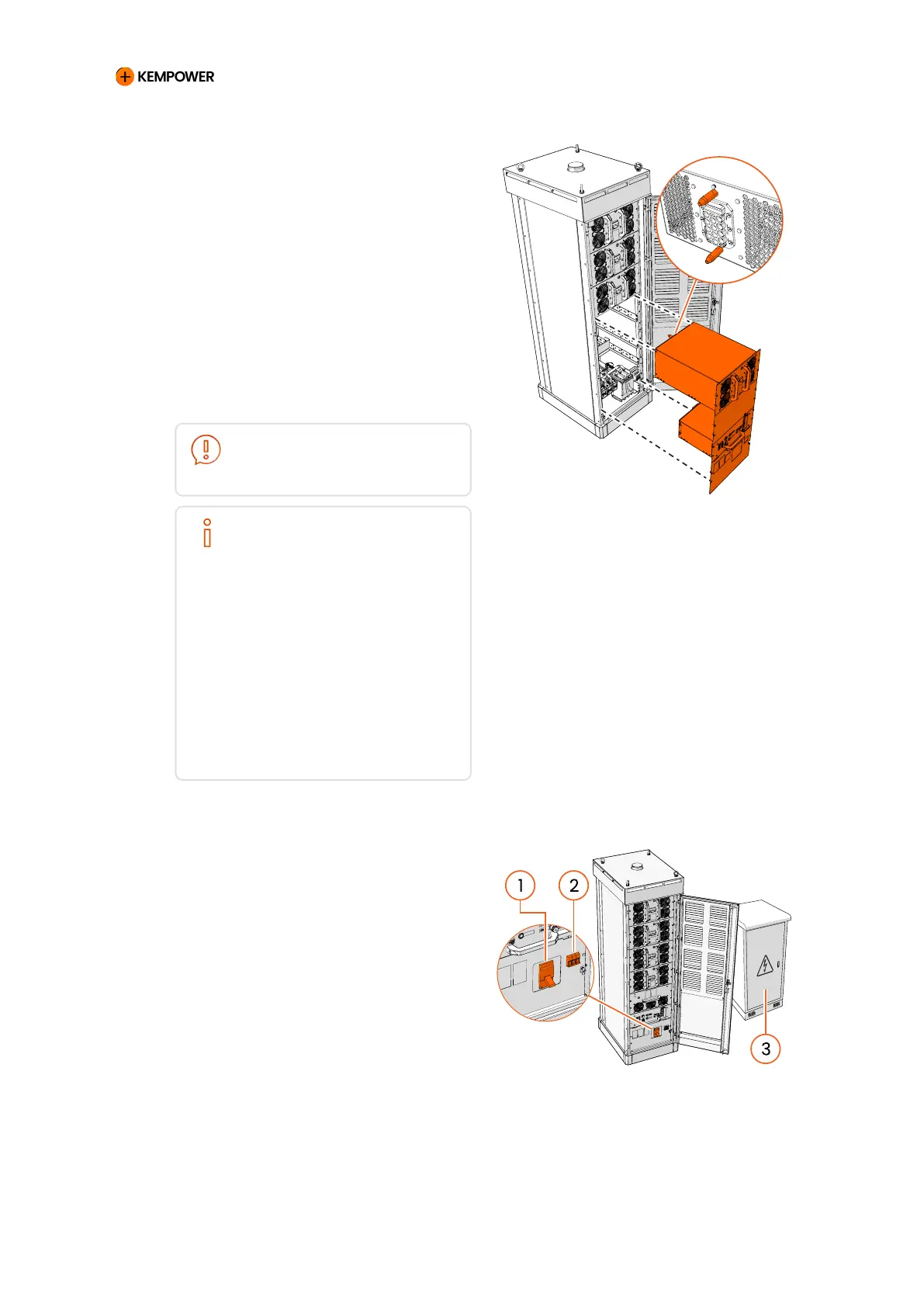

8. Push the power module, power
distribution module, and control
module into the unit. Make sure
that you do not damage the
modules.
Install the fixing screws to the
edges of the modules' front
panels.
Set the power module's circuit
breakers in ON position (up).
NOTICE
Do not lift the power module
from its guide pins.
NOTE
Make sure that the module's
connectors and connector
pins are in good operating
condition. When you push the
module into the unit, be very
careful not to damage the
connector pins.
If necessary, clean the
connectors with compressed
air and/or spray the
connectors with contact
cleaner spray.
9. Connect the AC power supply to
the unit from the main supply
point (3).
In each cabinet, set the
miniature circuit breaker (MCB)
for control voltage (2) and main
switch (1) to ON position.
Lock the door(s) of the unit.
