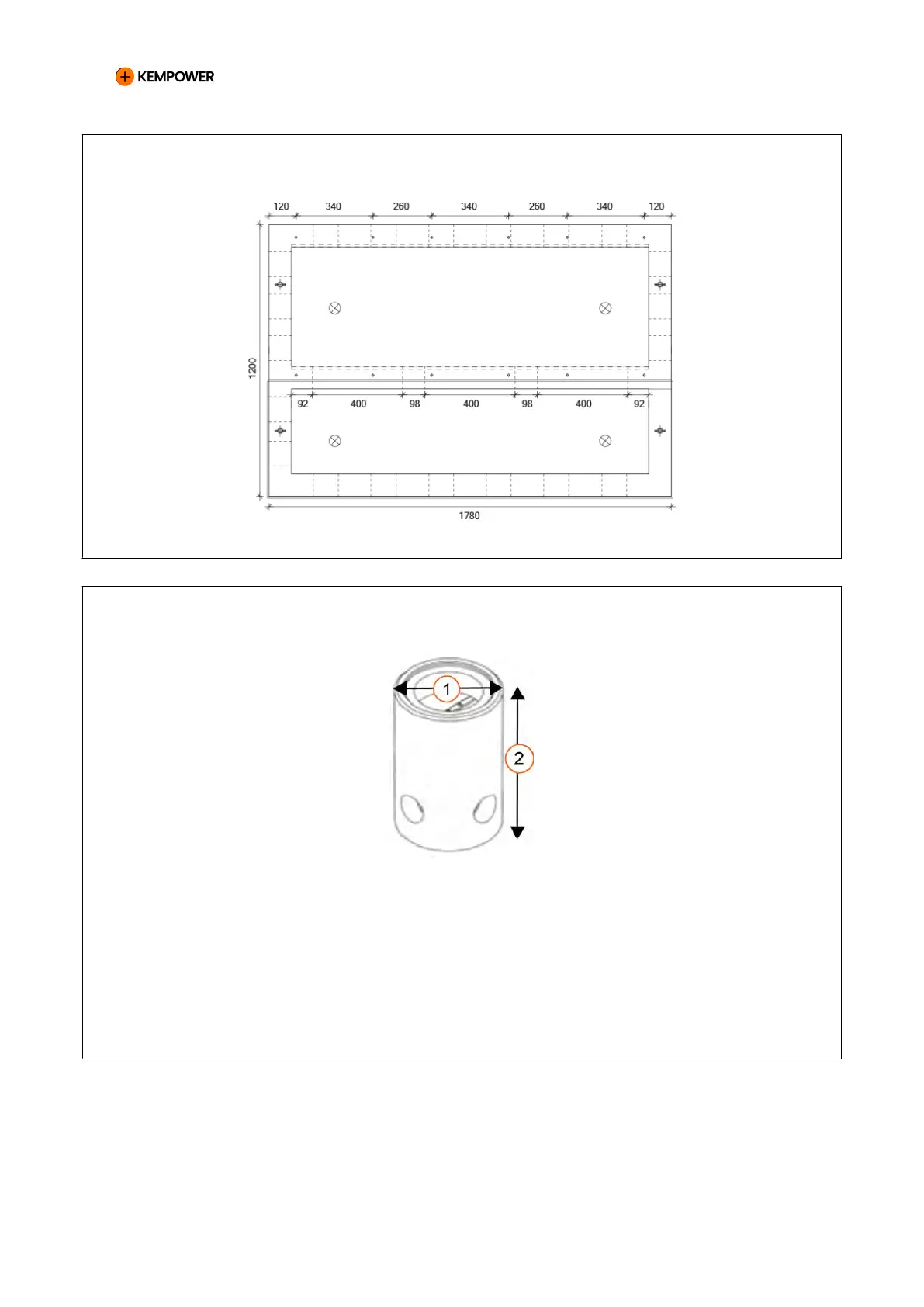

Figure 80. Indicative drawing for triple cabinet's concrete foundation, top view (mm)
Figure 81. Indicative drawing for Satellite concrete foundation (standard installation flange)
1 Outer diameter 400 mm
2 Height 600 mm
Top of foundation above ground 25–55 mm
Cable channel diameter approximately 150 mm
Weight approximately 100 kg
