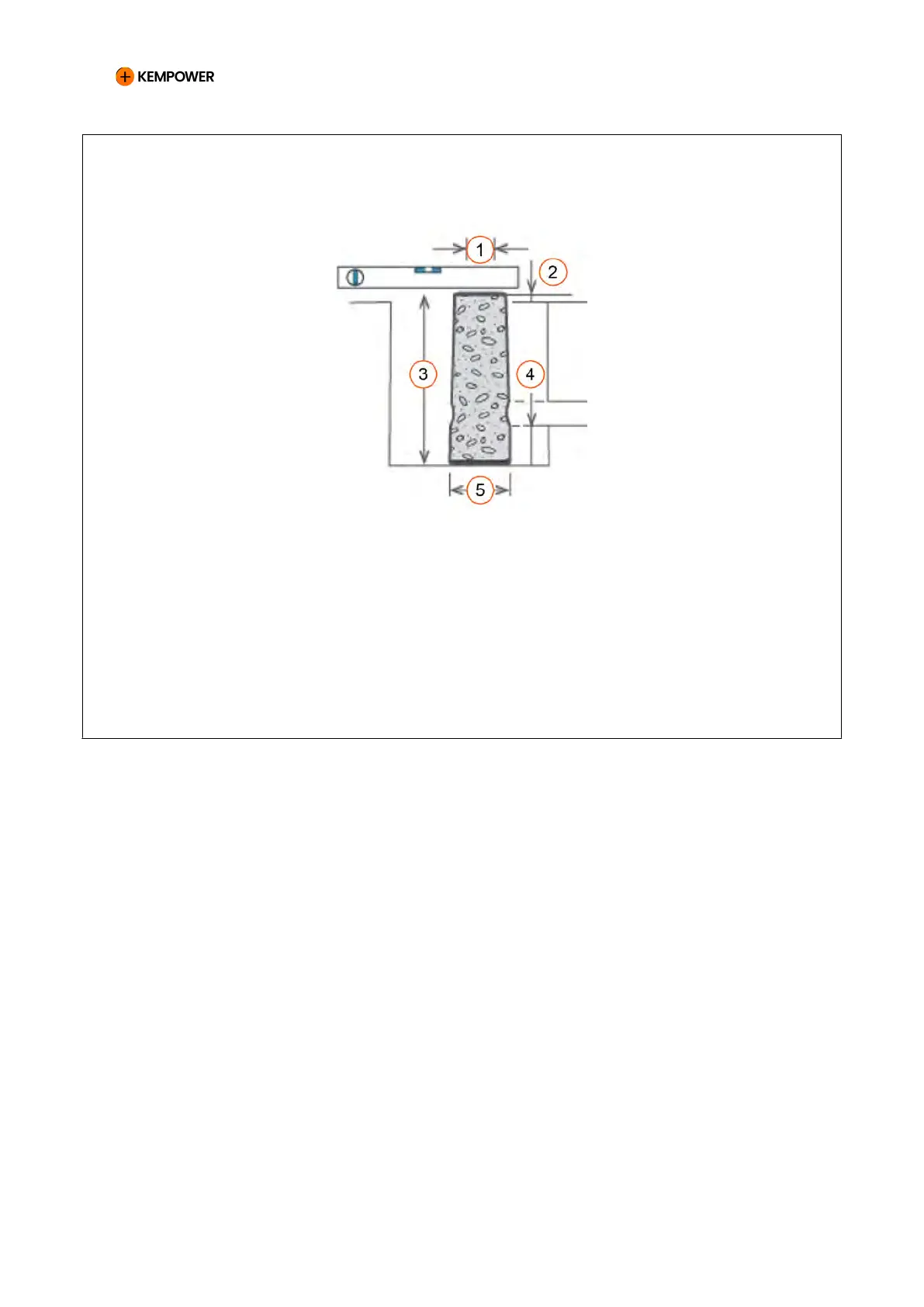

Figure 82. Indicative drawing for Satellite concrete foundation, typically used for e.g. lamp
posts (requires optional mounting tube)
1 Inner diameter 127 mm
2 Top of foundation above ground 25–55 mm
3 Height 600 mm
4 Cable channel diameter 150 mm
5 Outer diameter 264 mm
Weight approximately 80 kg
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 160 REV 2.40 EN 04-2024
