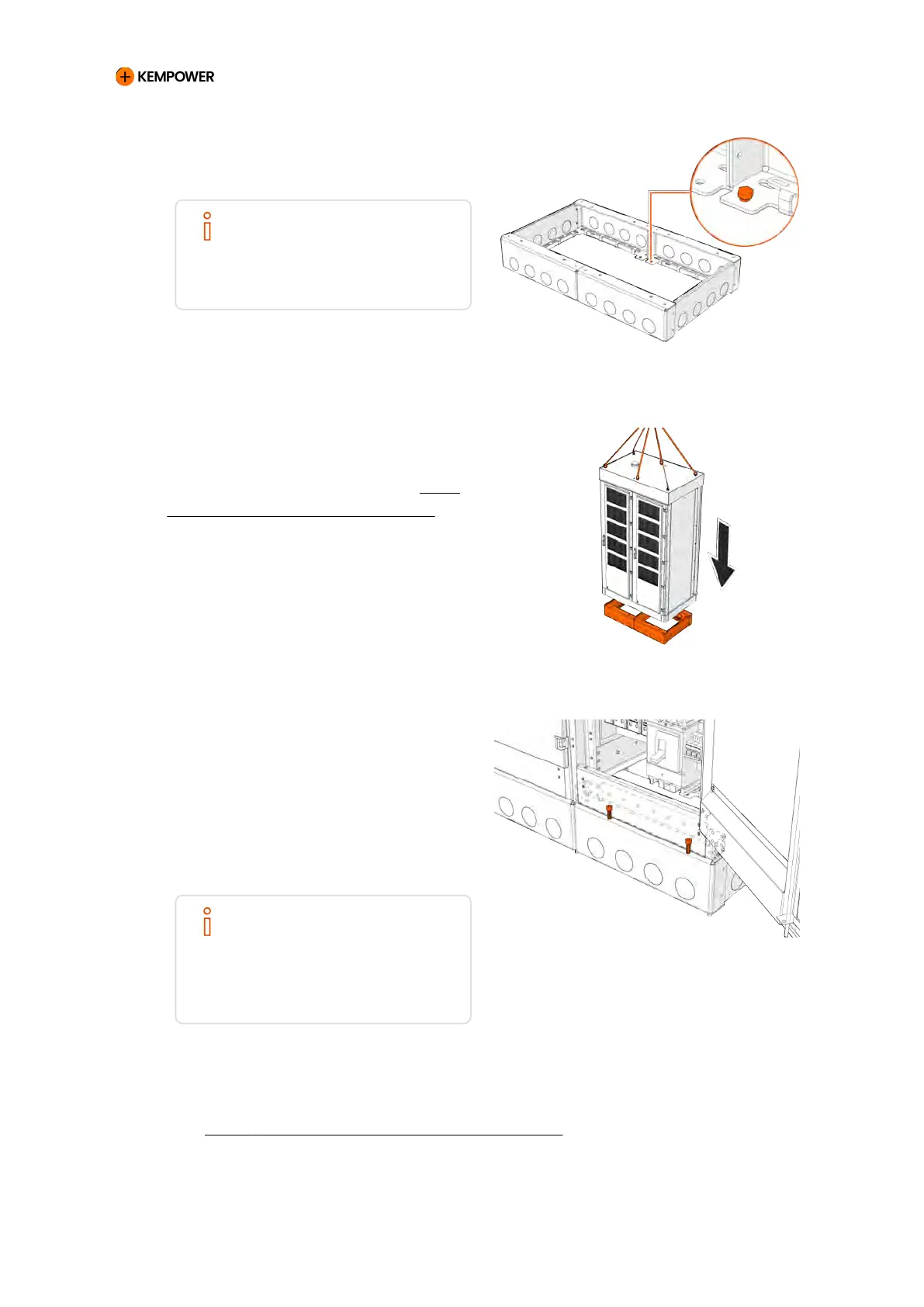

4. Use fasteners to install the steel
base to the installation surface.
NOTE
The fasteners used for
installing the steel base to the
installation surface are not
included in the delivery.
5. Lift the charging power unit
onto the steel base. For moving
and lifting instructions, see 5.1.3:
Moving and lifting Power Unit.
Make sure that the unit is
horizontally level.
6. Install the charging power unit
to the steel frame using four M12
bolts per cabinet.
At first, tighten the bolts only
loosely. Once all the bolts are in
place, tighten them completely.
NOTE
If the charging power unit
does not fit correctly onto the
steel base, you may need to
go back and readjust the steel
base.
7. Finalize the installation of the charging power unit. For instructions,
see 5.1.9: Installing the charging power unit.
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 48 REV 2.40 EN 04-2024
