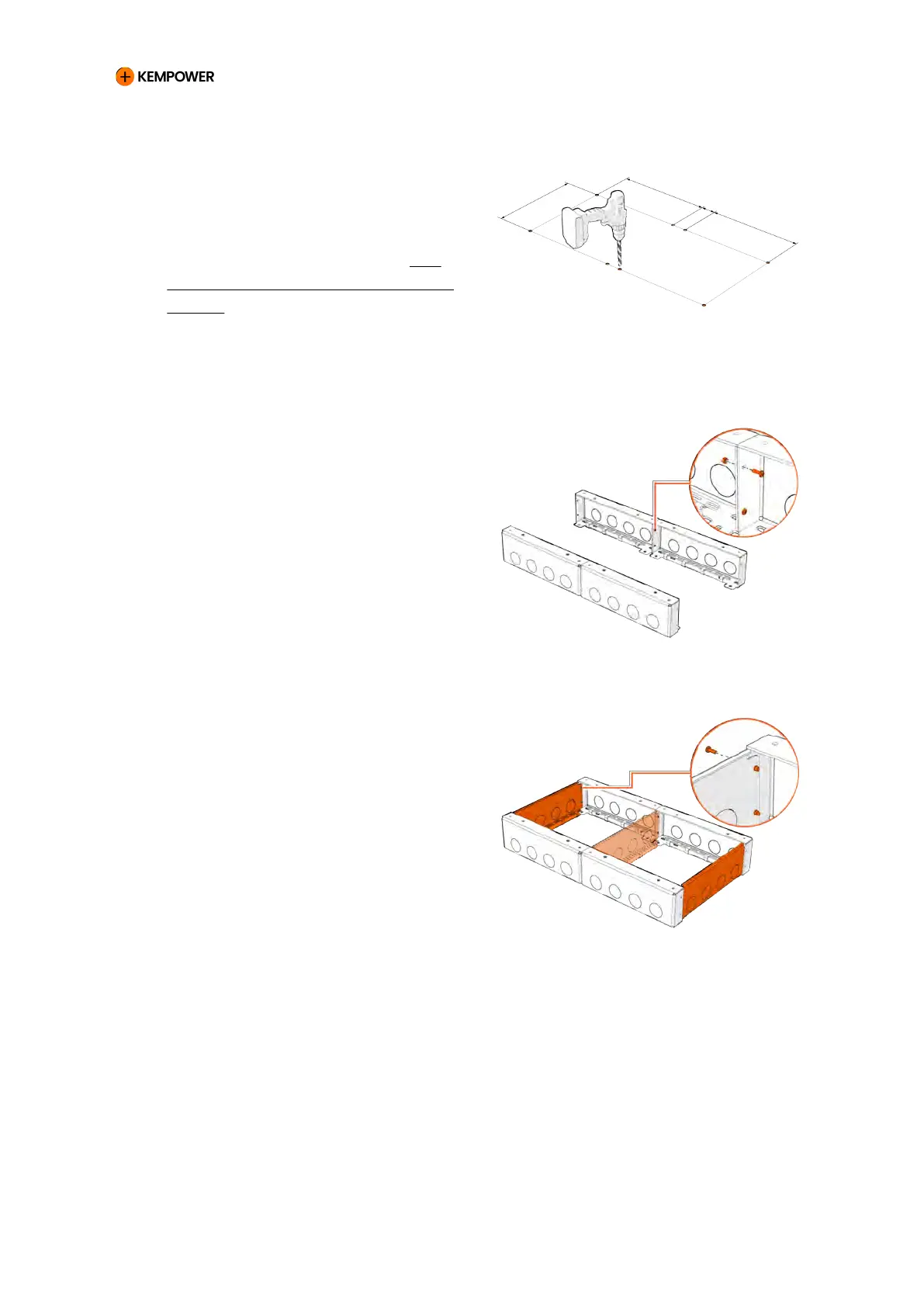

1. Drill the fixing holes into the
installation surface. Make sure
that the installation surface is
solid and as level as possible.
For more information, see 9.6:
Steel base footprints and fixing
points.
2. Assemble the side panels of the
steel base. Use two M6 bolts and
nuts for each seam to attach
the panels together.
Use the appropriate number of
side panels for your installation.
Two for a double cabinet and
three for a triple cabinet.
3. Attach the end panels using two
M6 bolts per seam.
The middle panel is optional.
CHARGING EQUIPMENT FOR ELECTRIC VEHICLES INSTALLATION MANUAL
CONFIDENTIAL – CERTIFIED PARTNERS 47 REV 2.40 EN 04-2024
