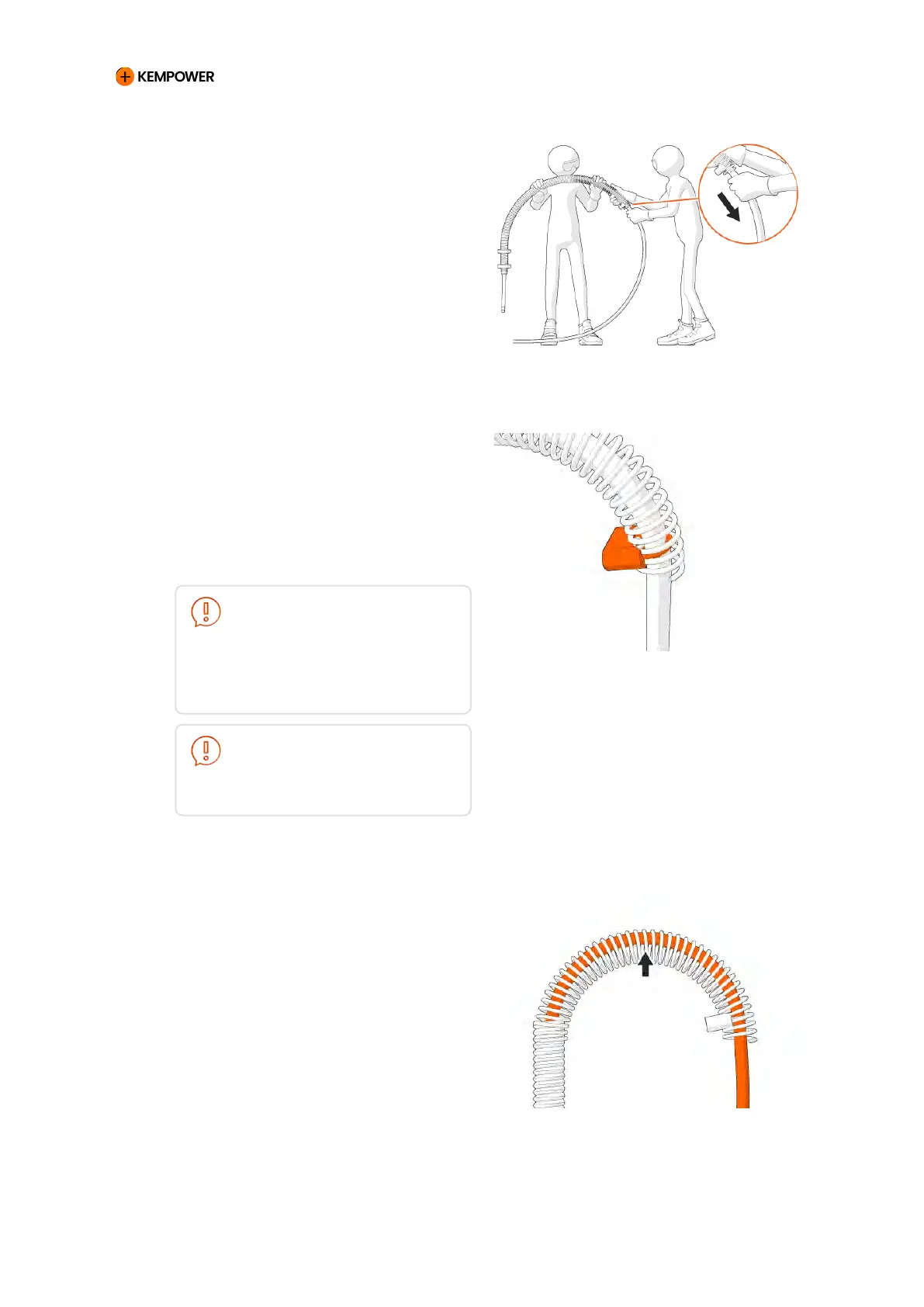

Method B
Make sure that the cable
bushing below the spring holder
is correctly tightened.
Have another person hold the
support spring in an extended
position. Pull the charging cable
from the support spring.
2. Tighten the cable clamp to lock
the charging cable in place
inside its support spring.
The size of the cable clamp's
nuts is M10.
NOTICE
Have the cable clamp's
locking part face toward the
inside bend of the charging
cable to avoid it hitting the
vehicle during charging.
NOTICE
Do not overtighten the
cable clamp. Overtightening
damages the charging cable.
3. Make sure that the charging
cable is in contact with the top
part of its support spring when it
is not in use.
This protects the charging cable
from chafing against its support
spring or the cable gland when
it is extended.
