– Square with 50% duty cycle
– Triangle with 50% symmetry
– UpRamp with 100% symmetry
– DnRamp with 0% symmetry
– Noise: White Gaussian noise
– PRBS: Pseudo Random Bit Sequence (polynomial PN7)
– Arb: Arbitrary waveform
Front Panel Operations

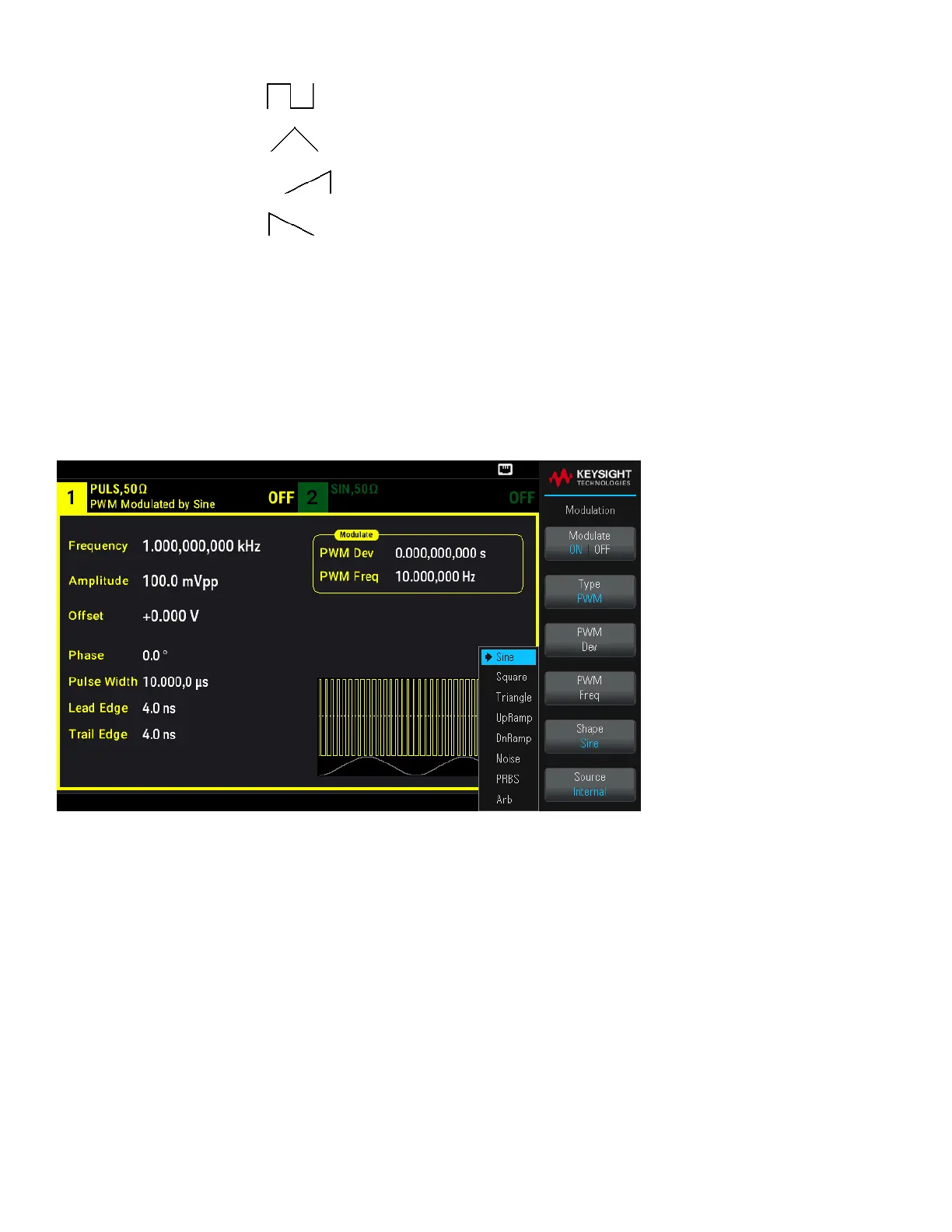

1. Press [Waveform] > Pulse.
2. Press [Modulate] > Type PWM > Shape Sine.
SCPI Command
[SOURce[1|2]:]PWM:INTernal:FUNCtion <function>
Modulating Waveform Frequency
Modulating frequency: The default is 10 Hz, and the minimum is 1 μHz. The maximum frequency varies by function,
model, and output voltage, as shown here.
114
Keysight EDU33210 Series User's Guide
