– Arbitrary waveform limitations: For arbitrary waveforms, amplitude is limited if the waveform data points do not
span the full range of the output DAC (Digital-to-Analog Converter). For example, the built-in "Sinc" waveform does
not use the full range of values, so its maximum amplitude is limited to 6.087 Vpp (into 50 Ω).
– Setting the high and low levels also sets the waveform amplitude and offset. For example, if you set the high level
to +2 V and the low level to -3 V, the resulting amplitude is 5 Vpp, with a -500 mV offset.
– To output a DC voltage level, select the DC voltage function (FUNCtion DC) and then set the offset voltage
(VOLTage:OFFSet). Valid values are between ±5 VDC into 50 Ω or ±10 VDC into an open circuit. While the
instrument is in DC mode, setting amplitude has no effect.
Front Panel Operations

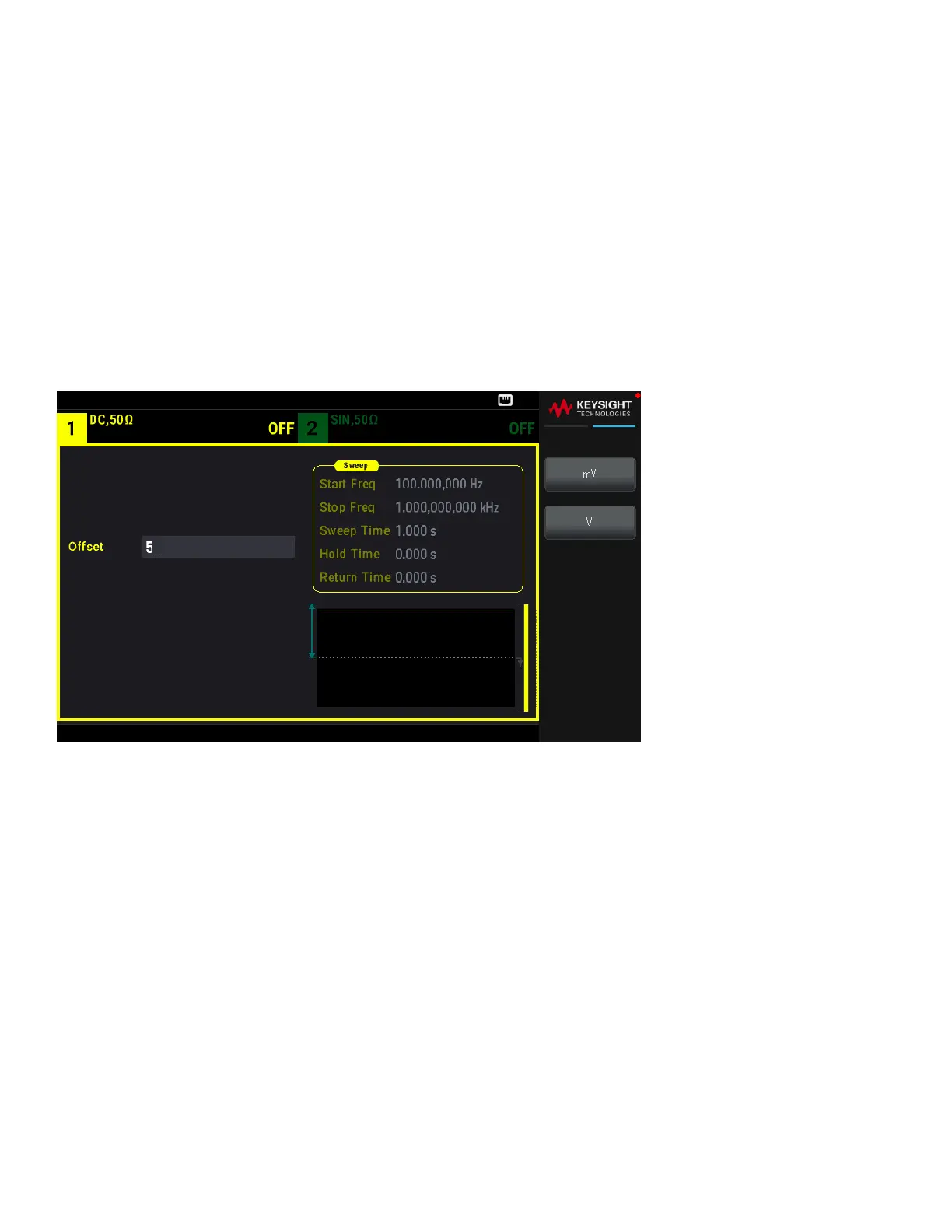

Press [Waveform] > MORE 1/2 > DC > Offset. Use the numeric keypad or the knob and arrows to set a desired value.
If you use the keypad, select a unit prefix to finish.
SCPI Command
[SOURce[1|2]:]VOLTage:OFFSet {<offset>|MINimum|MAXimum|DEFault}
[SOURce[1|2]:]VOLTage:HIGH {<voltage>|MINimum|MAXimum|DEFault}
[SOURce[1|2]:]VOLTage:LOW {<voltage>|MINimum|MAXimum|DEFault}
The APPLy command configures a waveform with one command.
Output Units
Applies to output amplitude only.
– Output units: Vpp (default), Vrms, or dBm.
– Setting is volatile.
– Units selection applies to front panel and remote interface operations. For example, if you select "VRMS"
remotely, the units are displayed as "VRMS" on the front panel.
86
Keysight EDU33210 Series User's Guide
