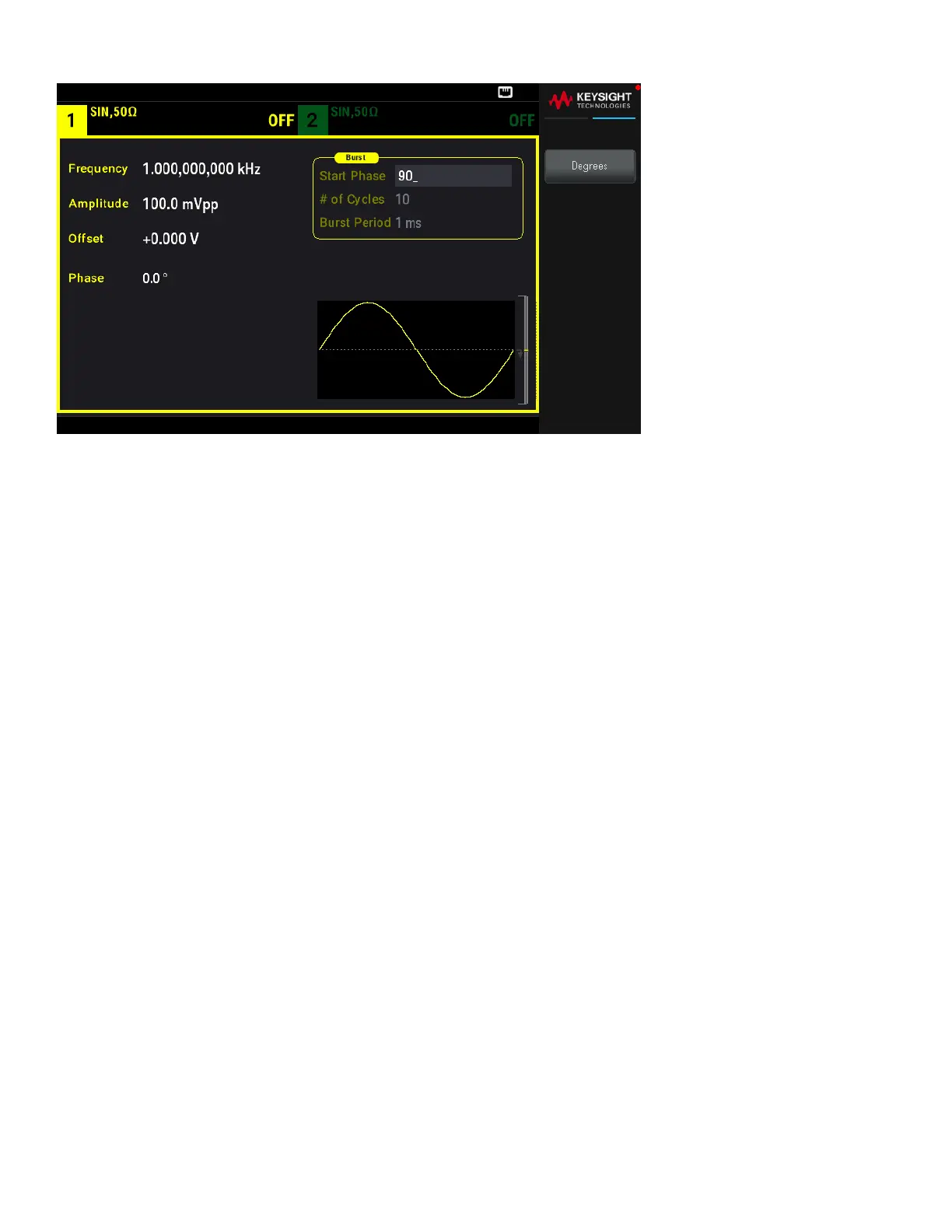

SCPI Command
[SOURce[1|2]:]BURSt:PHASe
{<angle>|MINimum|MAXimum}
Burst Trigger Source
In triggered burst mode:
– The instrument outputs a waveform of the specified number of cycles (burst count) when a trigger is received.
After the specified number of cycles have been output, the instrument stops and waits for next trigger.
– IMMediate (internal): the instrument outputs continuously when burst mode is enabled. The rate at which the burst
is generated is determined by BURSt:INTernal:PERiod.
– EXTernal: the instrument accepts a hardware trigger at the front panel Ext Trig connector. The instrument outputs
one burst of the specified number of cycles each time Ext Trig receives a level transition with the proper polarity
(TRIGger[1|2]:SLOPe). External trigger signals during a burst are ignored.
– BUS (software): the instrument initiates one burst each time a bus trigger (*TRG) is received. The front panel
[Trigger] key is illuminated when the instrument is waiting for a bus trigger.
– EXTernal or BUS: burst count and burst phase remain in effect, but burst period is ignored.
– TIMer: trigger events are spaced by a timer, with the first trigger as soon as INIT occurs.
Front Panel Operations
Press [Trigger] > Trigger Setup > Source.
138
Keysight EDU33210 Series User's Guide
