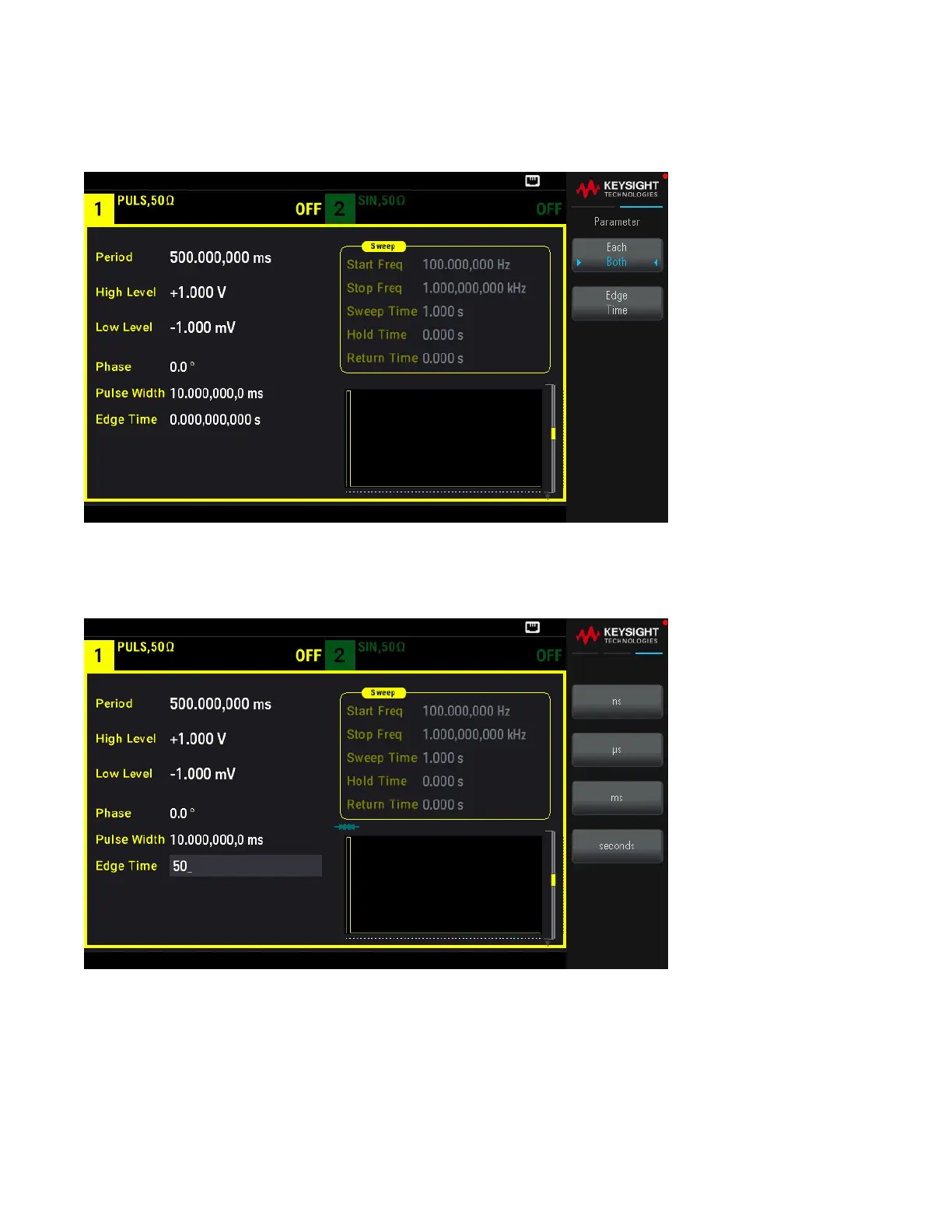

4. Set the edge time for both edges.
Press the Edge softkey and then Each Both.
Press Edge Time to set the edge time for both the leading and trailing edges to 50 ns. The edge time represents the
time from the 10% threshold to the 90% threshold of each edge.
Select a Stored Arbitrary Waveform
There are nine built-in arbitrary waveforms stored in non-volatile memory. They are Cardiac, D-Lorentz, Exponential
Fall, Exponential Rise, Gaussian, Haversine, Lorentz, Negative Ramp, and Sinc.
This procedure selects the built-in "exponential rise" waveform from the front panel.
Keysight EDU33210 Series User's Guide
35
