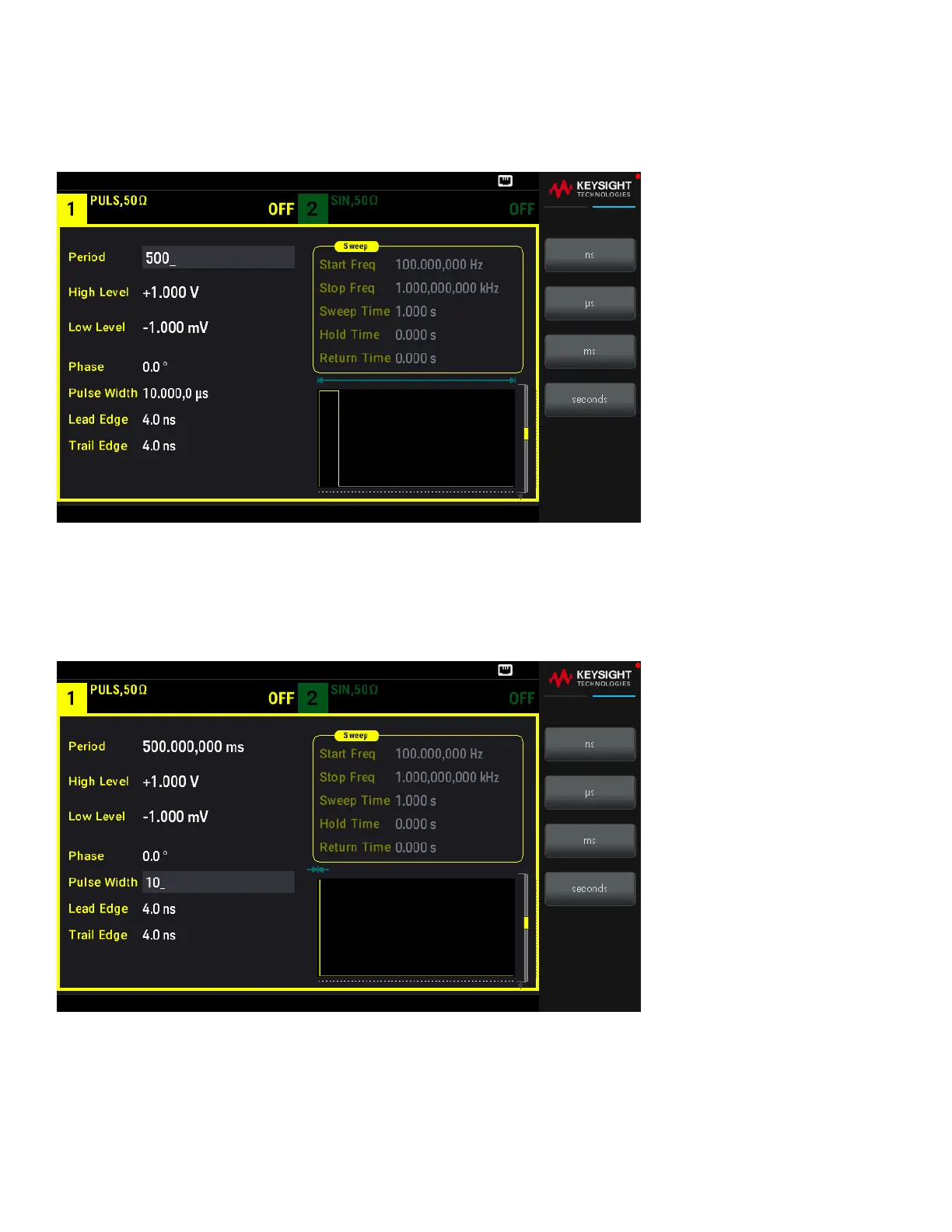

2. Set the pulse period.
Press the [Units] key and then press Frequency Periodic. Then press [Parameter] > Period. Set the period to 500 ms.
3. Set the pulse width.
Press [Parameter] > Pulse Width. Then set the pulse width to 10 ms. The pulse width represents the time from the
50% threshold of the rising edge to the 50% threshold of the next falling edge.
