Set the Output Amplitude
The instrument's default function is a 1 kHz, 100 mVpp sine wave (into a 50 Ω termination).
The following steps change the amplitude to 50 mVpp.

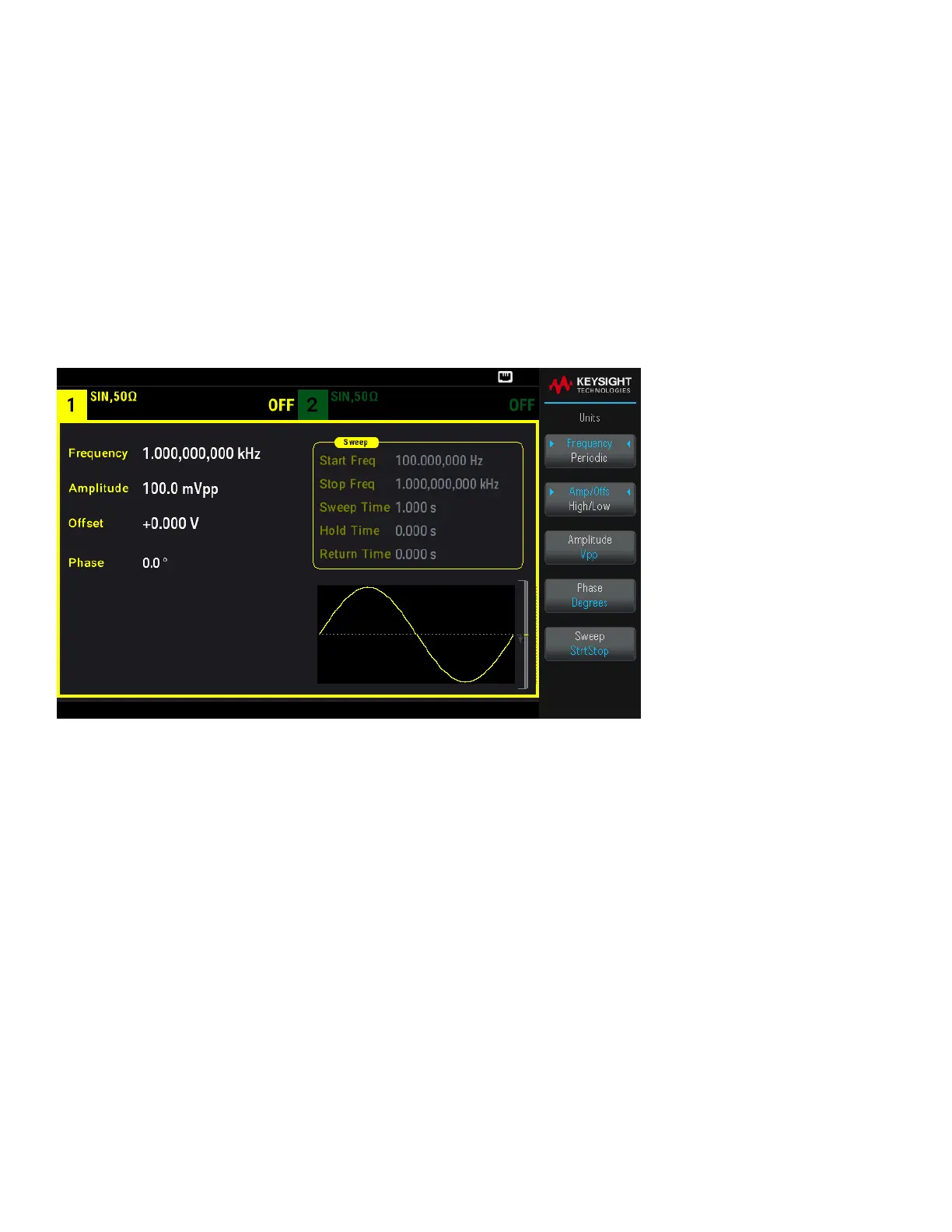

1. Press [Units] > Amp/Offs High/Low to specify voltage as amplitude and offset.
The displayed amplitude is either the power-on value or the amplitude previously selected. When you change func-
tions, the same amplitude is used if it is valid for the new function. To choose to specify voltage as high and low val-
ues instead, press Amp/Offs High/Low.
In this example, we will highlight Amp/Offs High/Low.
26
