Keysight EDU33210 Series User Manual

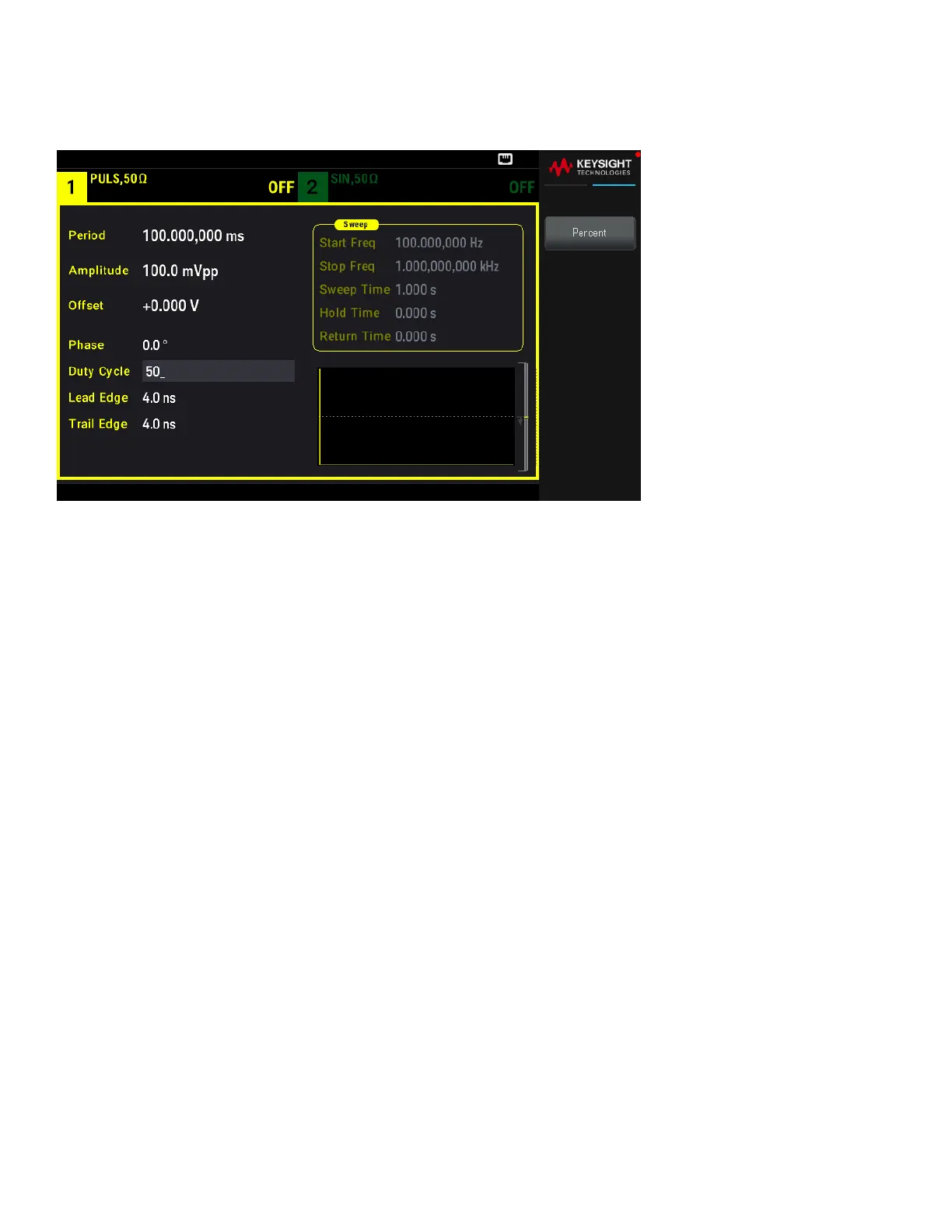

3. Enter the Duty Cycle: Press [Parameter] > Duty Cycle. Use the numeric keypad or the knob and arrows to set a
desired value. If you use the keypad, press Percent to finish.
SCPI Command
[SOURce[1|2]:]FUNCtion:PULSe:DCYCle {<percent>|MINimum|MAXimum|DEFault}
Edge Times
The edge times set the transition times for the leading and trailing edges of the pulse, either independently or
together. The edge time represents the time between the 10% and 90% thresholds.
– Edge time: Minimum of 8.4 ns. Maximum of 1 μs and default 10 ns.
– The specified edge time must fit within the specified pulse width as shown above. The instrument will adjust the
edge time to accommodate the specified pulse width.
Front Panel Operations
1. To set the transition times for the edges of the pulse independently: Press [Waveform] > Pulse > Edge > Each Both.
2. Press LeadEdge to set the transition time for the leading edge of the pulse. Use the numeric keypad or the knob and
arrows to set a desired value. If you use the keypad, select a unit prefix to finish.
98
