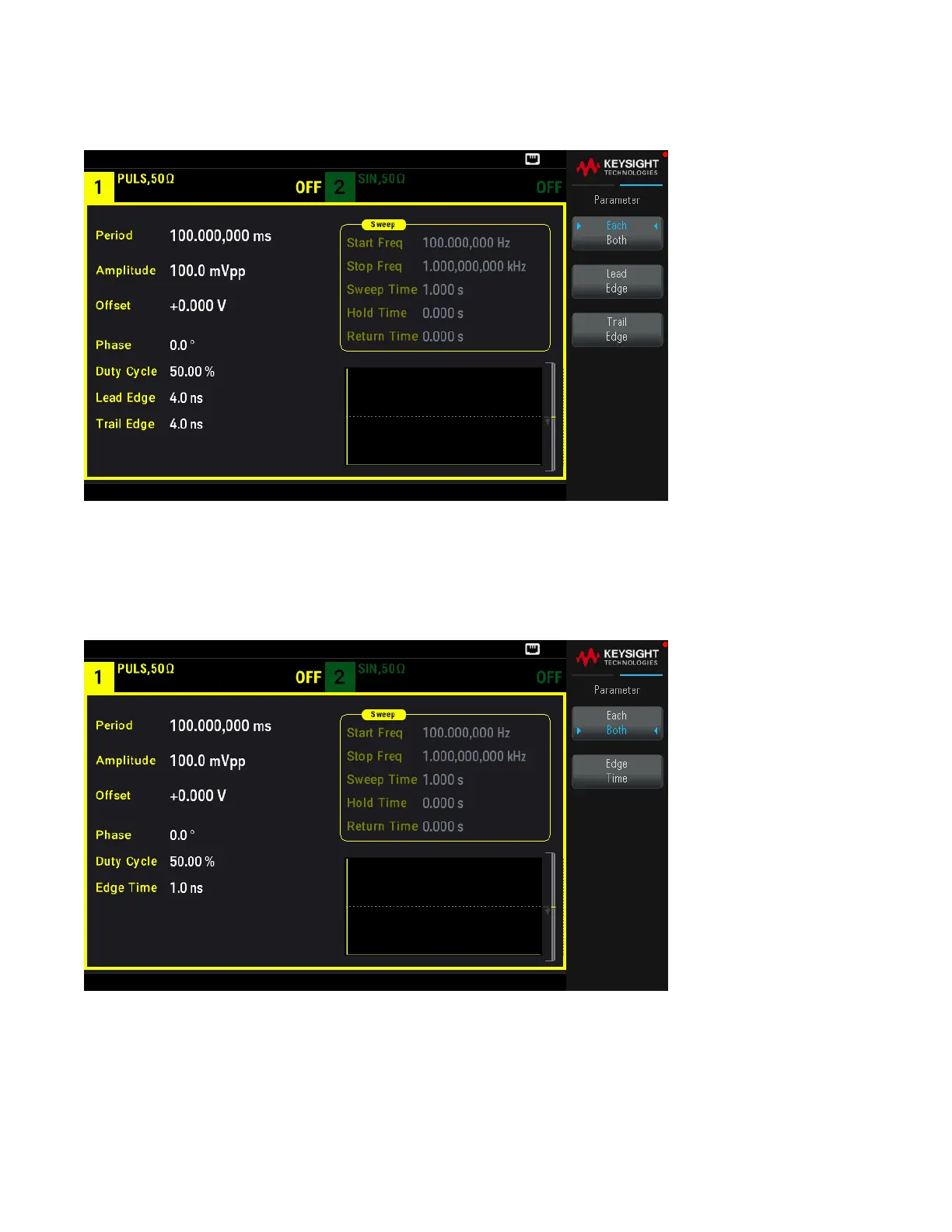

3. Press TrailEdge to set the transition time for the trailing edge of the pulse. Use the numeric keypad or the knob and
arrows to set a desired value. If you use the keypad, select a unit prefix to finish.
1. To set the transition times for the edges of the pulse together: Press [Waveform] > Pulse > Edge > Each Both.
2. Press Edge Time to set the transition times for both the leading and trailing edge of the pulse. Use the numeric
keypad or the knob and arrows to set a desired value. If you use the keypad, select a unit prefix to finish.
SCPI Command
[SOURce[1|2]:]FUNCtion:PULSe:TRANsition:LEADing{<seconds>|MINimum|MAXimum|DEFault}
