3. Select the desired units.
Press the softkey for the desired units. When you select the units, the instrument outputs the waveform with the dis-

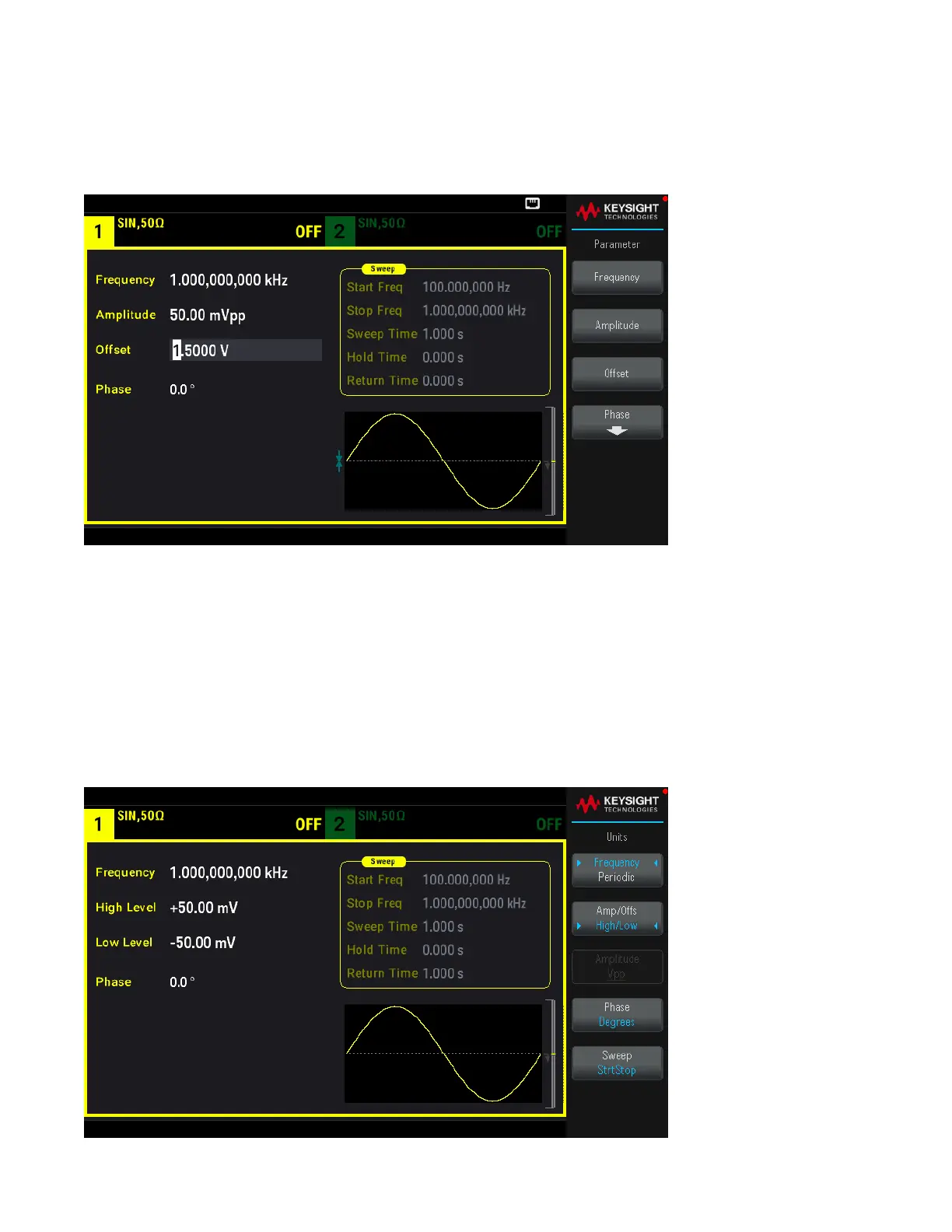

played offset (if the output is enabled). For this example, press V. The voltage will be set as shown below.
You can also enter the desired value using the knob and arrows.
Set High-Level and Low-Level Values
You can specify a signal by setting its amplitude and DC offset, described above. You can also specify the signal as
high (maximum) and low (minimum) values. This is typically convenient for digital applications. In the following
example, we will set the high level to 1.0 V and the low level to 0.0 V.
1. Press [Units] > Ampl/Offs High/Low. Toggle to High/Low as shown below.
Keysight EDU33210 Series User's Guide
29
