Amplitude Coupling
Amplitude coupling, enabled by the Ampl Cpl ON | OFF softkey, couples the amplitude and offset voltage between
the channels so that changing the amplitude or offset on one channel affects both channels.

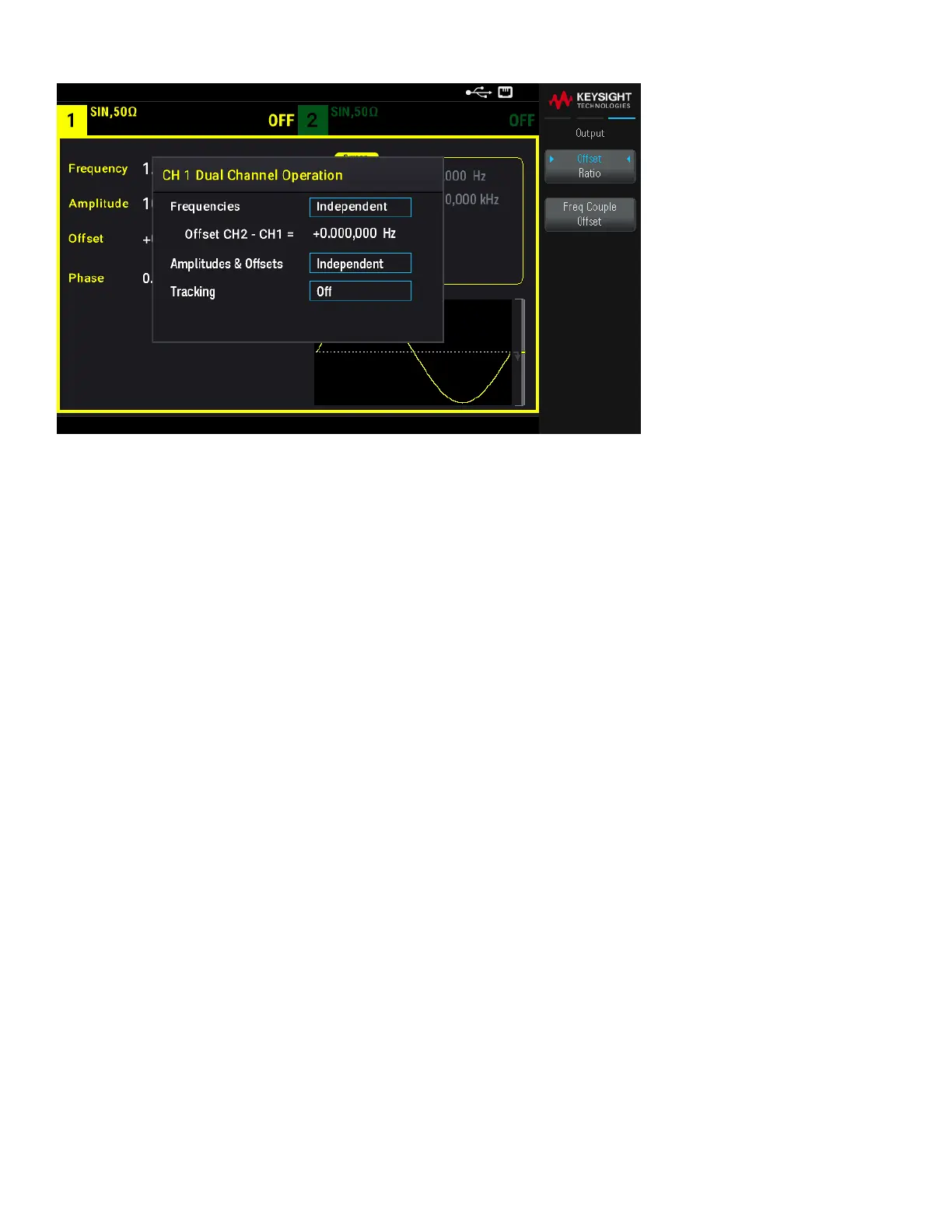

Tracking
Tracking, configured by the Tracking softkey, has three modes: OFF, Identical, and Inverted.
– When tracking is OFF, the two channels operate independently.
– When tracking is Identical, they behave as one channel.
– The third mode, Inverted, makes the channels' outputs inverses of each other, resulting in a differential channel
using both outputs.
Combine
The Combine feature combines two outputs into one connector. If you choose CH2 from the Channel 1 menu, they
are combined on channel 1; choosing CH1 from the Channel 2 menu combines them on channel 2.
In the image below, the top waveform is a 100 mVpp, 1 kHz sine wave on channel 1, and the bottom waveform is a
100 mVpp, 5 kHz sine wave on channel 2.
150
Keysight EDU33210 Series User's Guide
