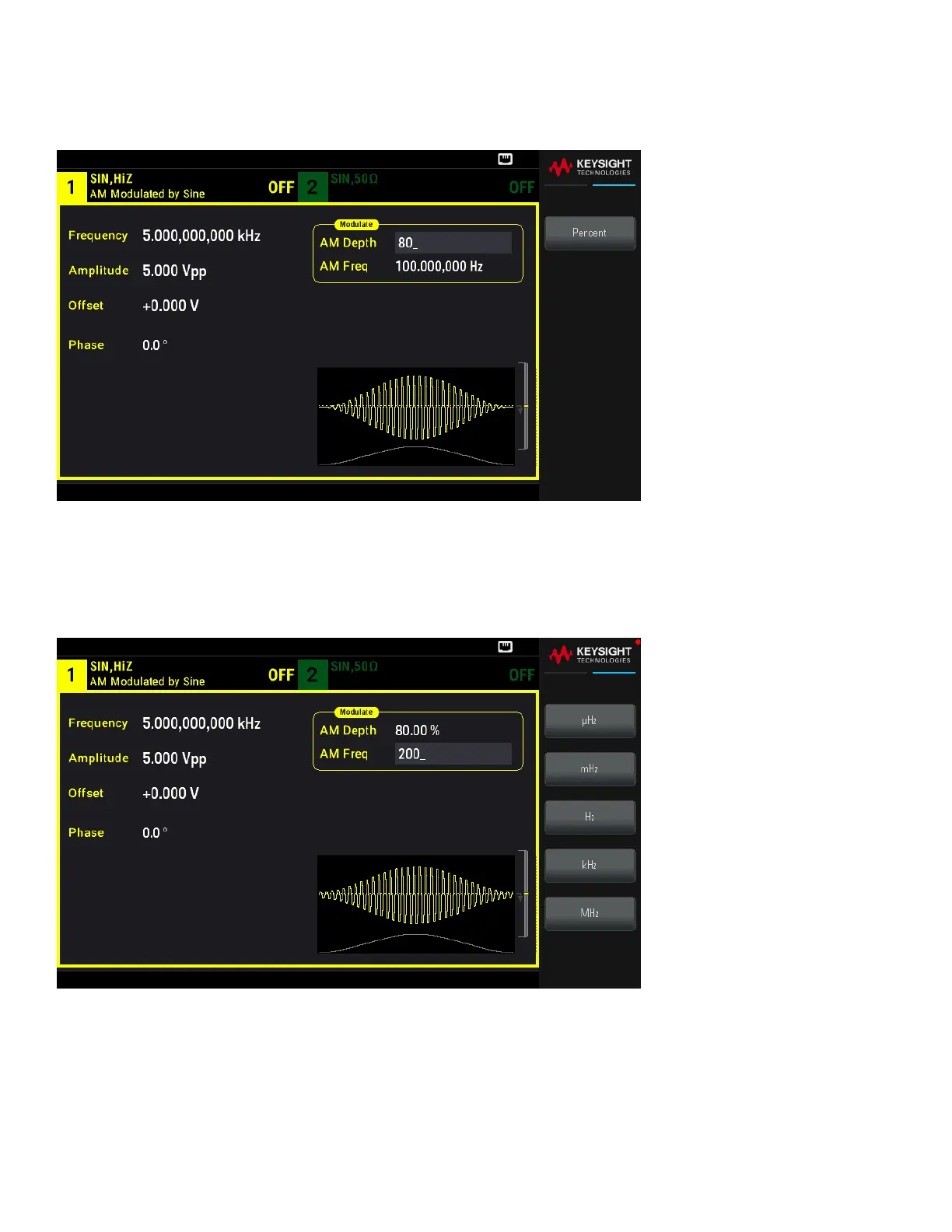

3. Set the modulation depth. Press the AM Depth softkey and then set the value to 80% using the numeric keypad or
the knob and arrows.
4. Select the modulating waveform shape. Press Shape to select the modulating waveform's shape. For this example,
select a Sine wave.
5. Press AM Freq. Set the value to 200 Hz using the numeric keypad or the knob and arrows. Press Hz to finish entering
the number if you are using the numeric keypad.
Output an FSK Waveform
You can configure the instrument to "shift" its output frequency between two preset values (called the "carrier
frequency" and the "hop frequency") using FSK modulation. The rate at which the output shifts between these two
frequencies is determined by the internal rate generator or the signal level on the front panel Ext Trig connector. For
56
Keysight EDU33210 Series User's Guide
