Keysight EDU33210 Series User Manual

80% modulation depth. The carrier will be a 5 kHz sinewave and the modulating waveform will be a 200 Hz sine
wave.

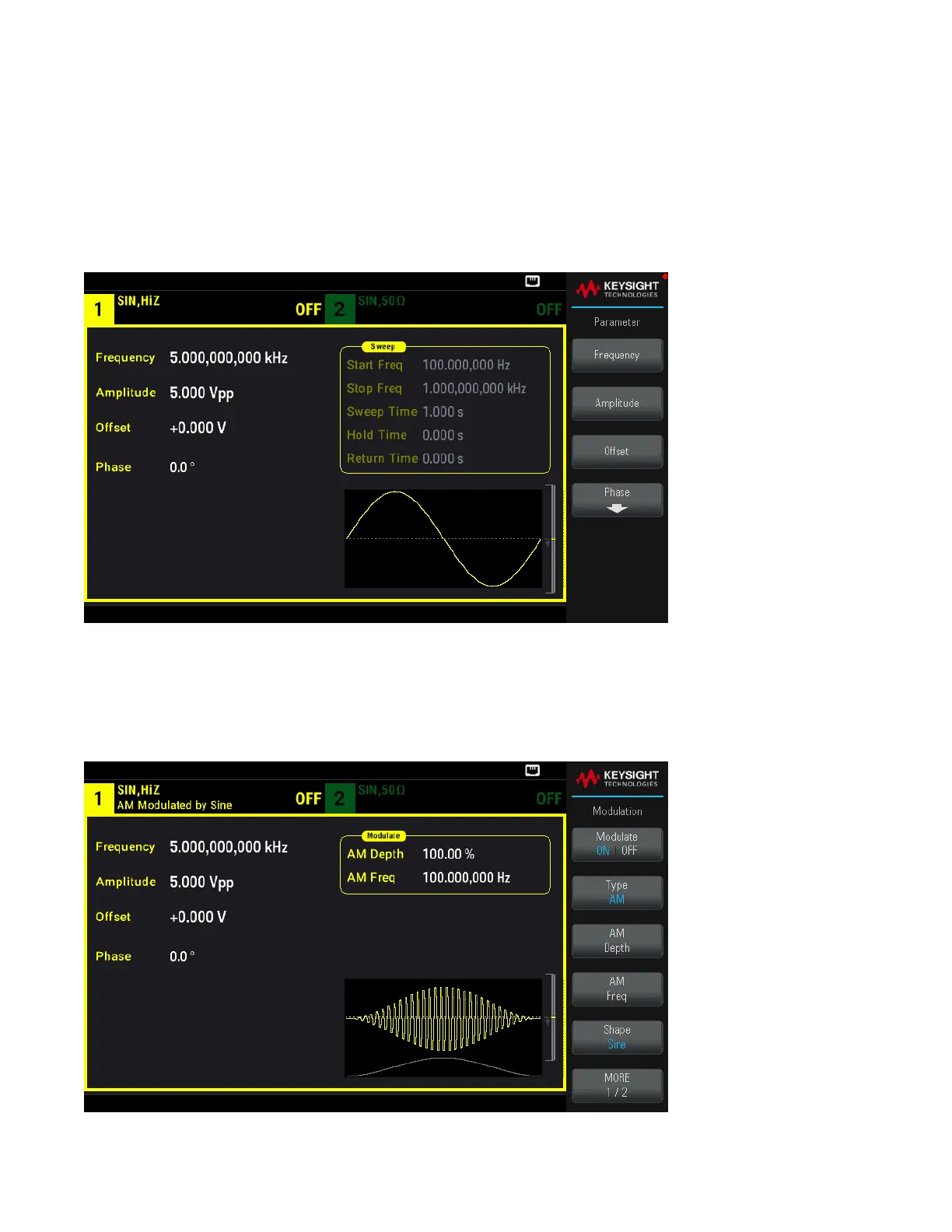

1. Select the function, frequency, and carrier amplitude.
Press [Waveform] > Sine. Press the Frequency, Amplitude, and Offset softkeys to configure the carrier waveform. For
this example, select a 5 kHz sine wave with an amplitude of 5 Vpp, with 0 V offset. Note that you may specify amp-
litude in Vpp, Vrms, or dBm.
2. Select AM.
Press [Modulate] and then select AM using the Type softkey. Then press the Modulate soft key to turn modulation
ON.
Keysight EDU33210 Series User's Guide
55
