Keysight EDU33210 Series User Manual

this example, you will set the "carrier" frequency to 5 kHz and the "hop" frequency to 500 Hz, with an FSK rate of 100
Hz.

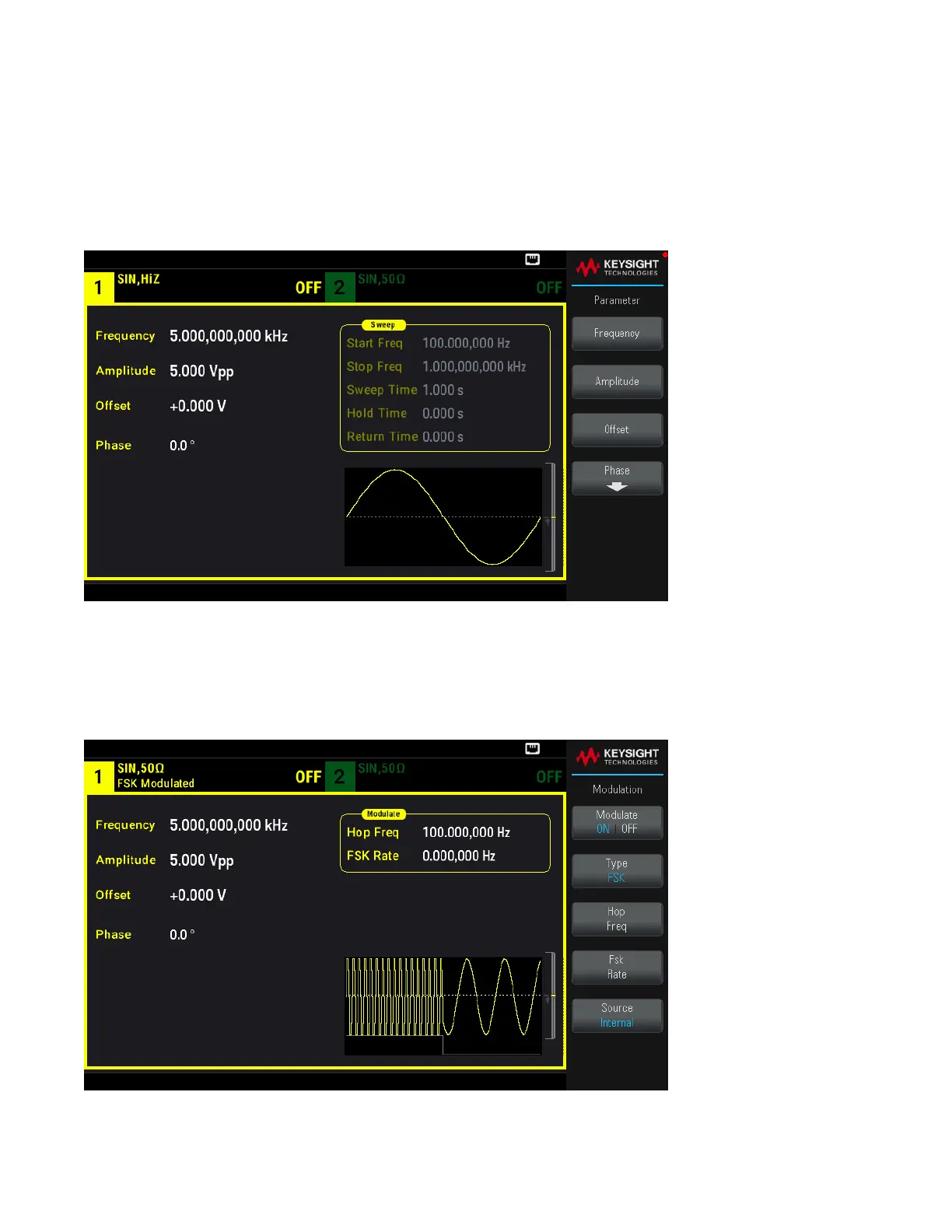

1. Select the function, frequency, and carrier amplitude.
Press [Waveform] > Sine. Press the Frequency, Amplitude, and Offset softkeys to configure the carrier waveform. For
this example, select a 5 kHz sine wave with an amplitude of 5 Vpp, with 0 V offset.
2. Select FSK.
Press [Modulate] and then select FSK using the Type softkey. Then press the Modulate softkey to turn modulation
ON.
Keysight EDU33210 Series User's Guide
57
