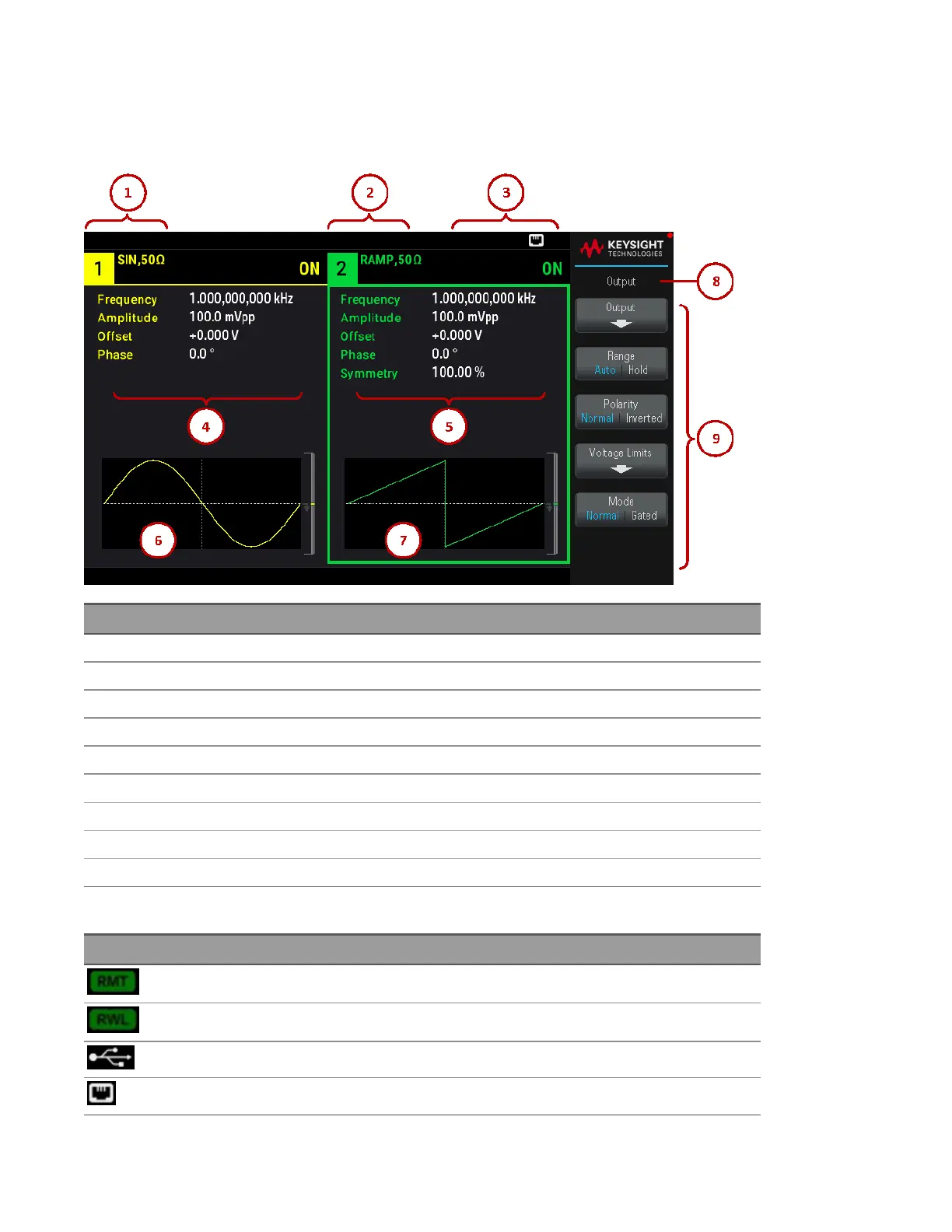

Dual Channel View (Applicable for EDU33212A Only)
Press [Setup] twice to enter the dual channel view mode. In this mode, pressing [Setup] toggles between single
channel view and dual channel view.
Legend Description
1 Channel 1 information
2 Channel 2 information
3 Status indicators
4 Channel 1 waveform parameters
5 Channel 2 waveform parameters
6 Channel 1 waveform display
7 Channel 2 waveform display
8 Function name
9 Softkey labels
Instrument Status Indicators
Legend Description
Shown when remote mode is enabled
Shown after SYSTem:RWL command is sent
USB flash drive is connected
LAN is connected
