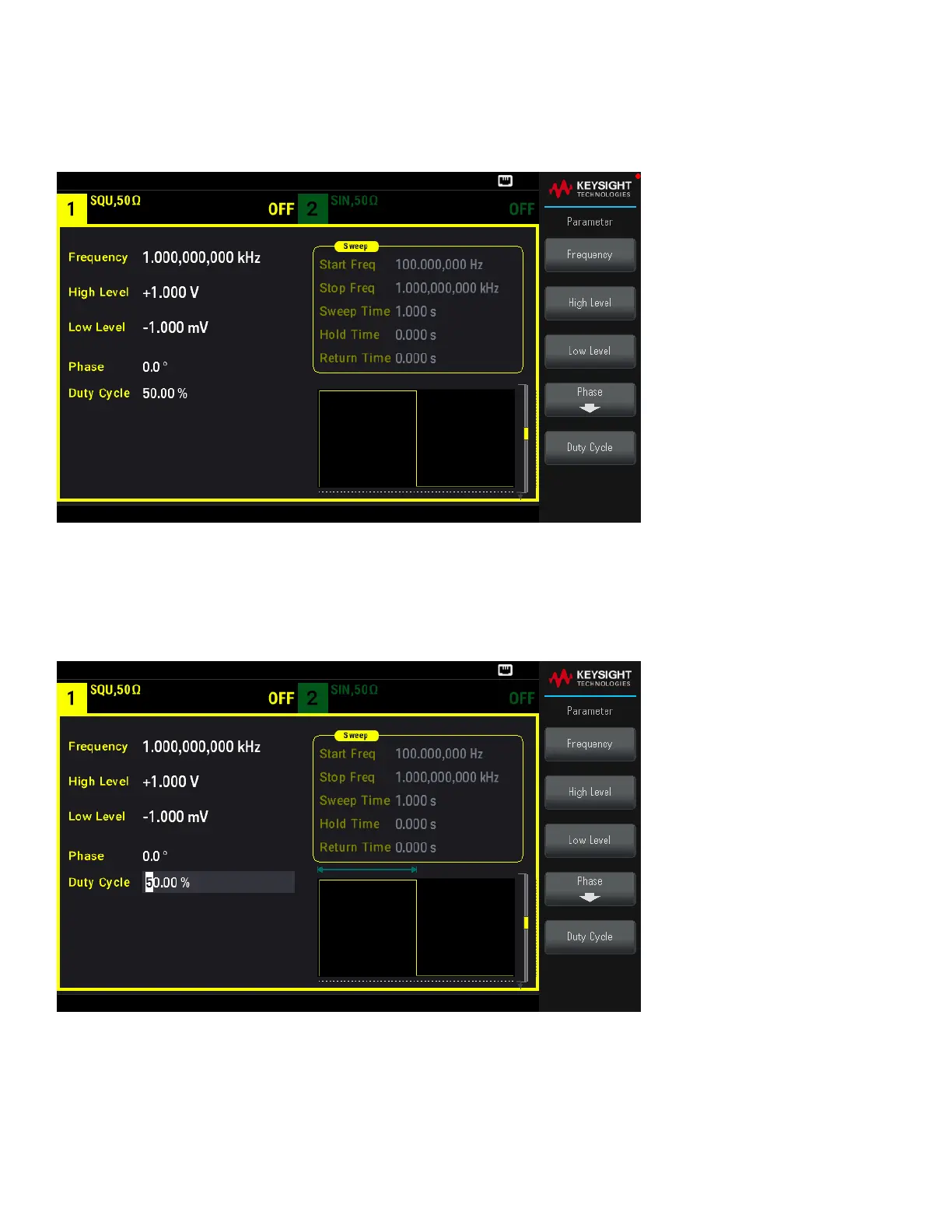

1. Select the square wave function.
Press [Waveform] > Square.
2. Press the Duty Cycle softkey.
The displayed duty cycle is either the power-on value or the percentage previously selected. The duty cycle rep-
resents the amount of time per cycle that the square wave is at a high level.
32
Keysight EDU33210 Series User's Guide
