DIAGNOSTICS Checkout Procedures

10DEC05

DG4825-1

Page

130 of 180

3 Check the status of:

• PLATE PRESENT SENSOR S5

• LED DS29 on the MOTION SYSTEM CONTROL BOARD A1

4 Does the status of the PLATE PRESENT SENSOR S5 and the LED DS29 match?

5 Check that the EMITTER is illuminated. Use an IR PHOSPHOR PROBE TL-2579.

Status

PLATE PRESENT

SENSOR S5

LED DS29

Blocked X Illuminated

Not blocked Not illuminated

Yes No

Advance to Step 6. Continue with Step 5.

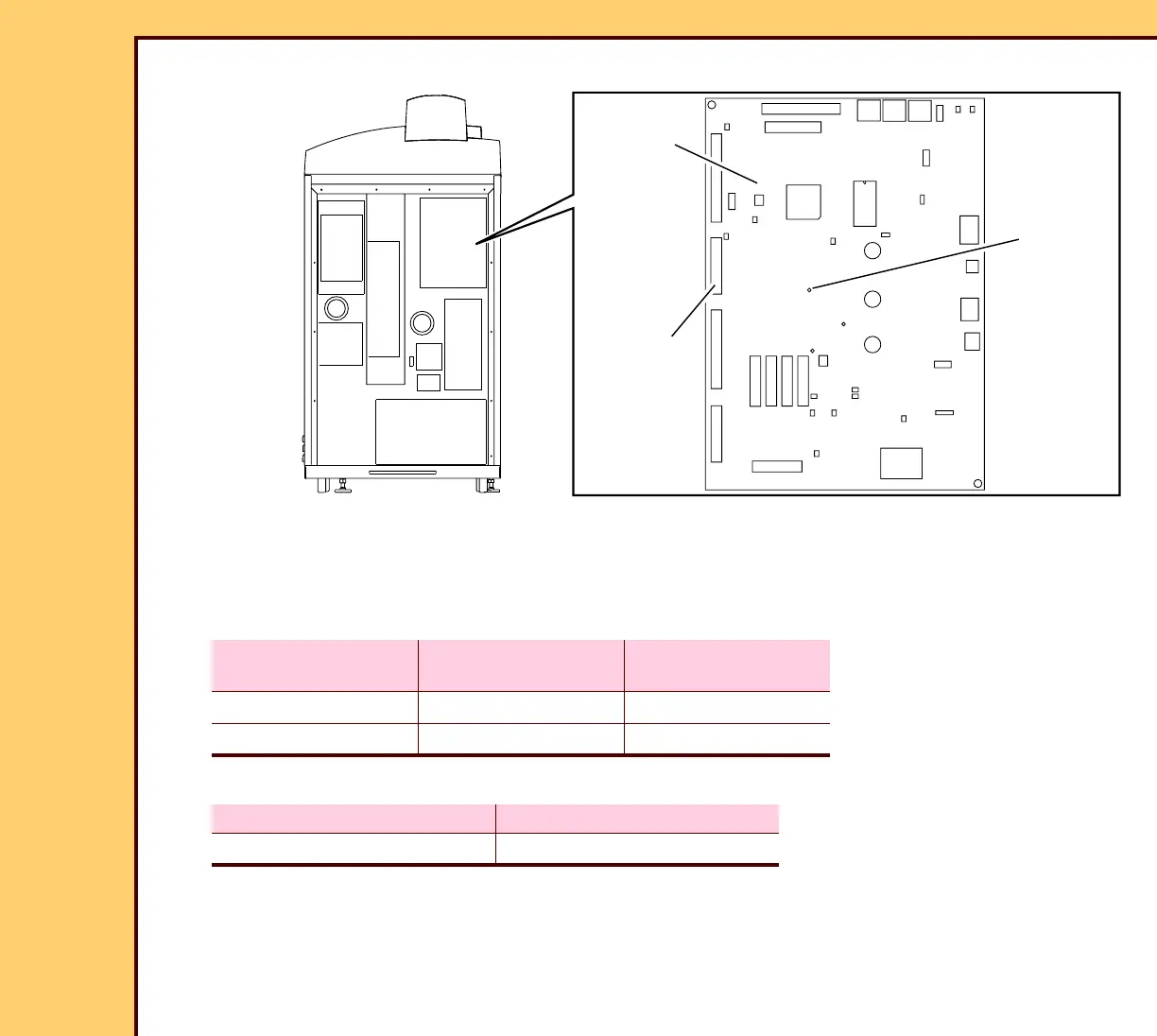

H194_0033BC
