Check Specifications of the Front Section
KVAL 994-X Operation/Service Manual
3-16
2. Choose the axis to be calibrated,
a.X (Horizontal)
b.Y (Vertical)
c.Z (Depth)

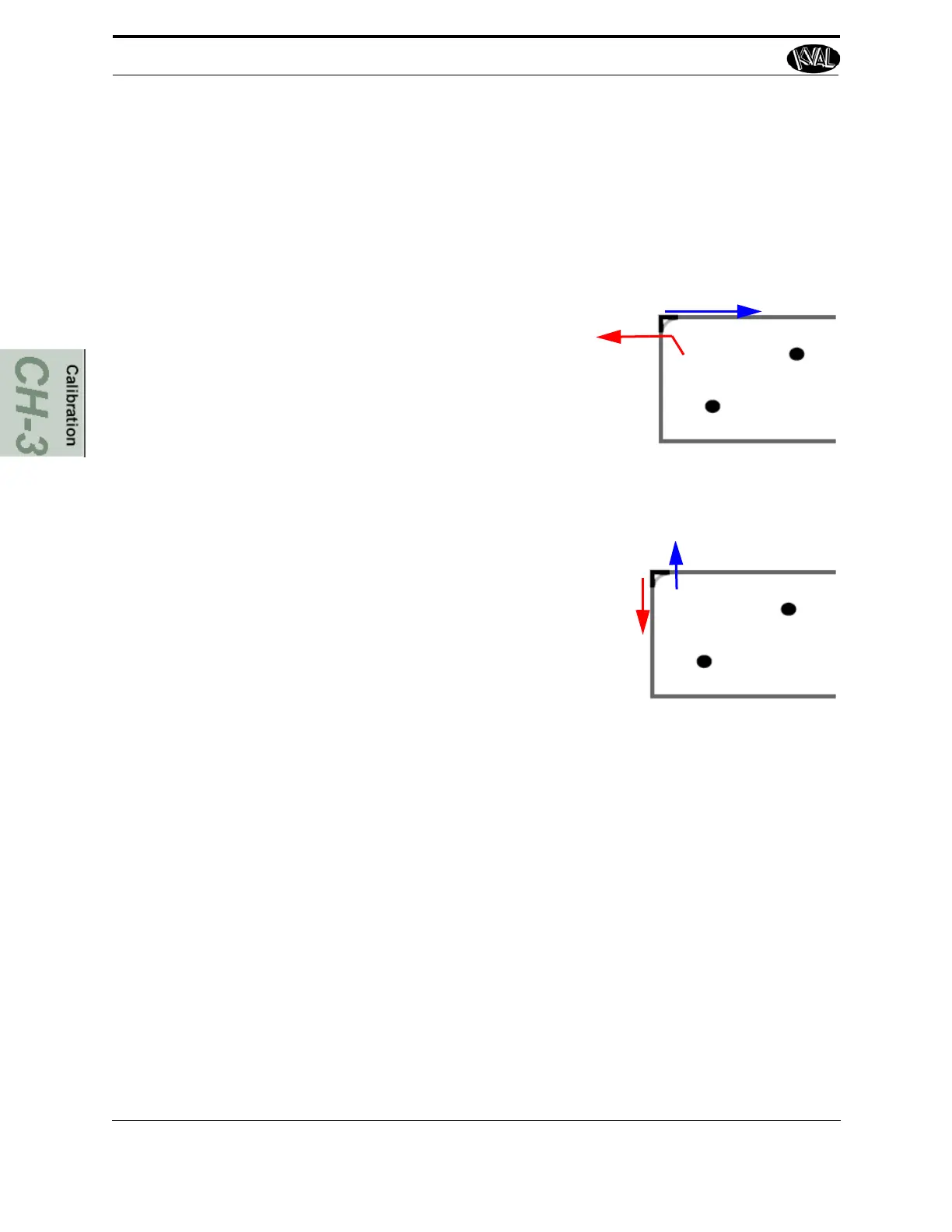

3. X-Axis: use a caliper to measure how much the chisel cut is off compared to the ver-
tical hinge cut with the router on the jamb.
a.Take the caliper measurement, and enter it into
the X-axis box.
b.If the chisel needs to move to the left, enter it as
a negative number.
c.If the chisel needs to move to the right, enter a
positive number.
d.Repeat until chisel position is correct.
Positive
Negative
4. Y-Axis: use a caliper to measure how much the chisel cut is off compared to the hor-
izontal hinge cut with the router on the jamb.
a.Take the caliper measurement, and enter it into
the Y-axis box.
b.If the chisel needs to move down, enter it as a
negative number.
c.If the chisel needs to move up, enter a positive
number
d.Repeat until chisel position is correct
Positive
Negative
5. Z-Axis: use a caliper to measure the depth of the chisel compared to the correspond-
ing hinge route.
a.Take the caliper measurement, and enter it into the Z-axis box.
b.If the chisel is too deep enter it as a negative number.
c.If the chisel is too shallow, enter it as a positive number.
d.Repeat until chisel position is correct
6. Click the “Combine with Base” button to combine the two numbers to create refer-
ence.
