Kval 994-X - Door Stops; Opt N: Weather Strip Brackets

In-Feed Section
2-7
KVAL 994-X Operation/Service Manual
Door Stops
The door stop positions are set at the factory derived form customer specifications. The stops are
activated at the Operator Interface.
Top of Door Right Hand
Bottom Door Left Hand
Bottom of Door Right Hand
Top of Door Left Hand
Bottom of Door Right Hand
Top Door Left Hand
8' 0''
* 6’ 8''
* Some Options may have a separate 7’ 0'' stop in-between the 8’0'' and 6’8'' stops. Some
options use the 6’ 8'' stop as a reference for the 7’0'' door
* 6’ 8''
8' 0''

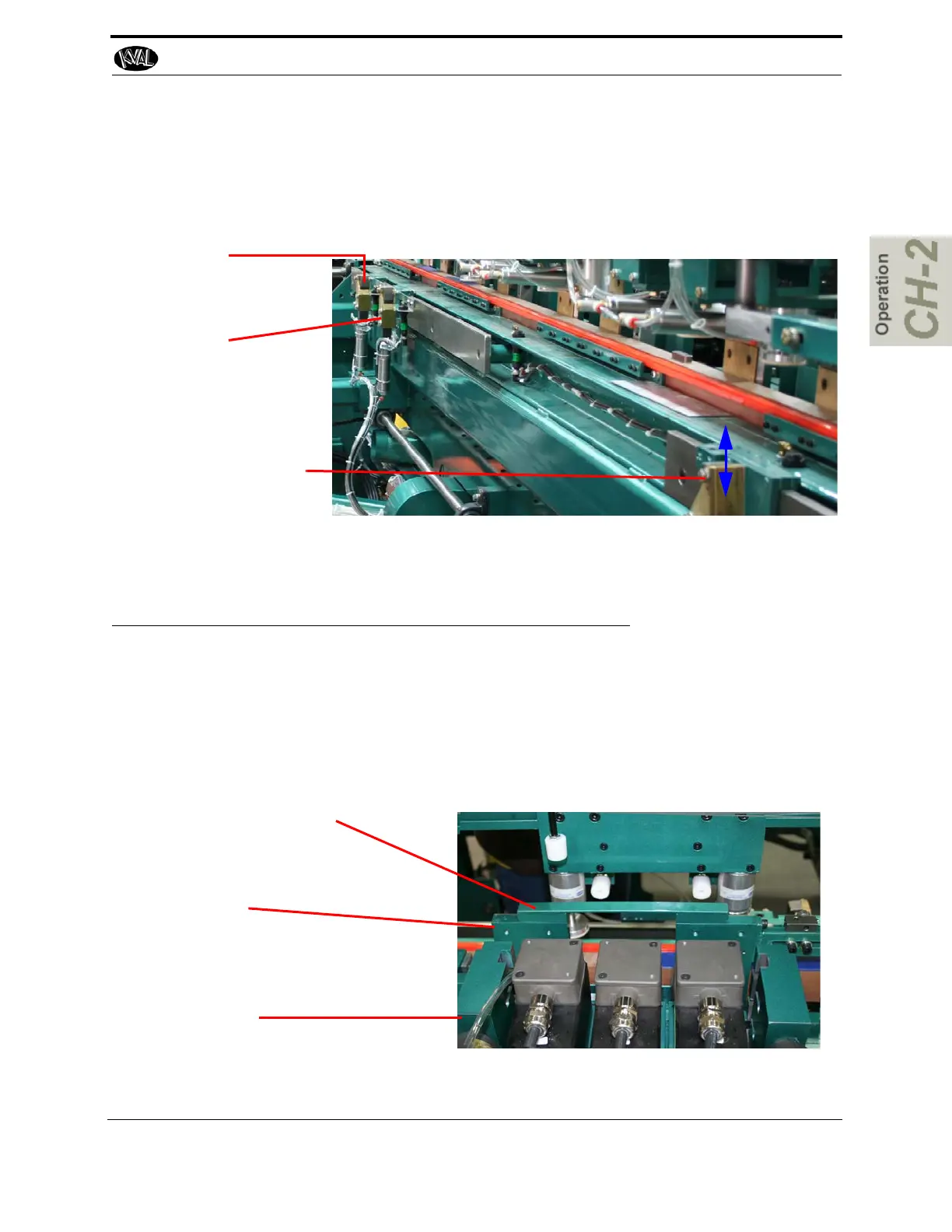

FIGURE 2- 6. Stops Located on Machine
Opt N: Weather Strip Brackets
Isolates Weather Strips during the routing process. A protective bar across top of H block keeps
the strip up and away from the routers.
Protective Bar: Keeps Jamb
weather stripping from inter-
fering with the machining pro-
cess
Carriage:
H Block:
