Description of the Six Light Panel
2-29
KVAL 994-X Operation/Service Manual

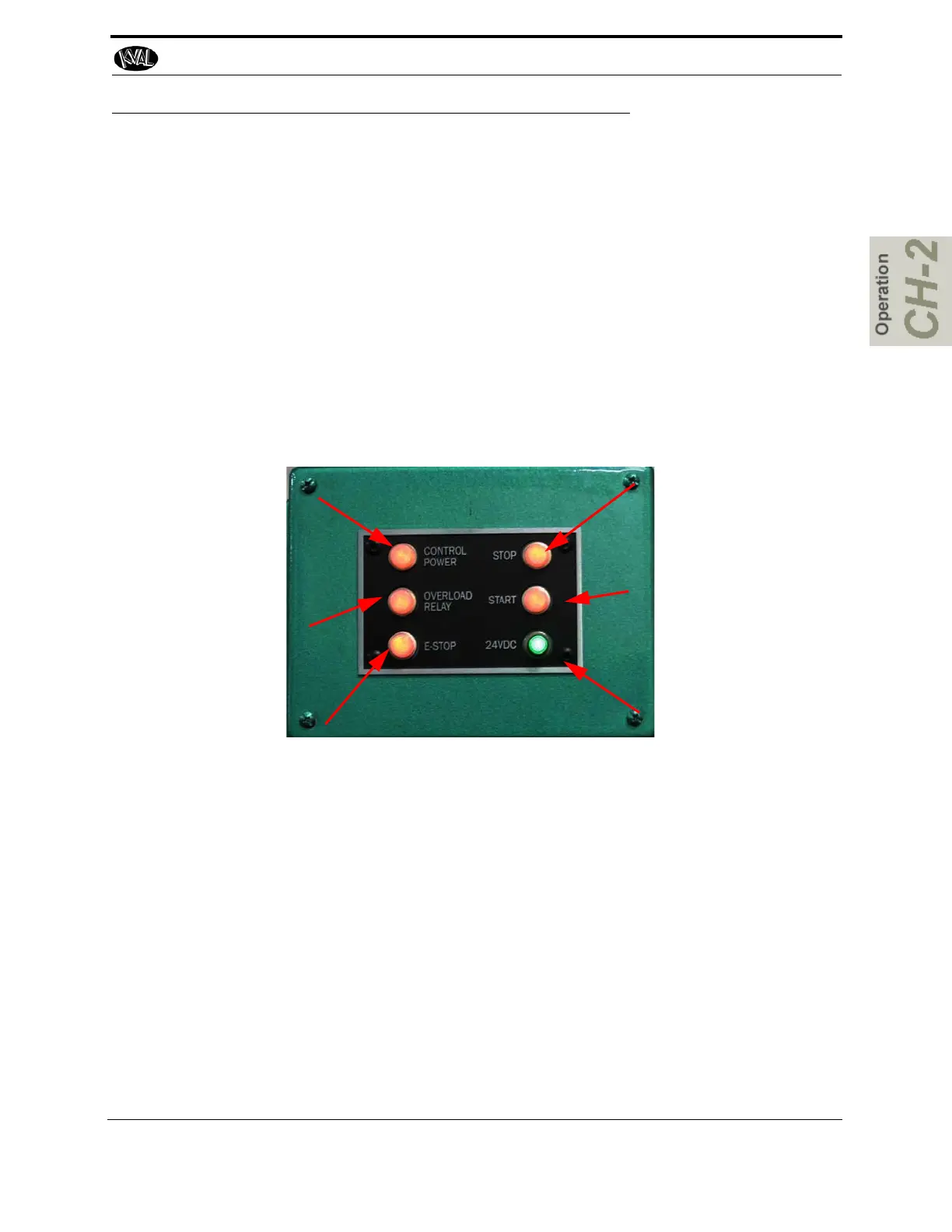

Description of the Six Light Panel
The six lights on this panel indicate the status of the 994-X system.
The Sequence that the lights activate is as follows:
1. Control Power
2. Overload Relay
3. E-Stop
4. Stop
5. Start
6. 24VDC
Control Power – light
illuminates when the
Control Transformer
is pulled out and the
power is working on
secondary side-of
transformer
Overload Relay –
The overload circuit is
working when light is
on
E-Stop – The back
gate is closed and
Frame E-stop is not
activated when this
light is on.
24VDC – light
comes on once the
ACR is latch and the
24VDC power Supply
is working
Stop – This light will
be on if Machine
Stop button is deac-
tivated.
Start – This light will
be on once the
Machine Start button
is pressed and the
ACR Relay is latched.
