Kval 994-X - About the Setup Hinges 1-4 Screens

Slow Lock Plate Timing
Vert ical : The amount of time in seconds to give the
vertical movement of the lock plate when in “Slow
Plate” mode.
Horizontal: The amount of time in seconds to give the
horizontal movement of the lock plate when in “Slow
Plate” mode.
About the Setup Screens
2-45
KVAL 994-X Operation/Service Manual
About the Setup Hinges 1-4 Screens
From these screens, you can adjust the parameters of each head. Refer to Figure 2- 1 on page 3 for
head locations.
• Setup Hinge 1
• Setup Hinge 2
• Setup Hinge 3
• Setup Hinge 4
Counter Rotate Route
r: Option CR only
Chisels: Option CH only

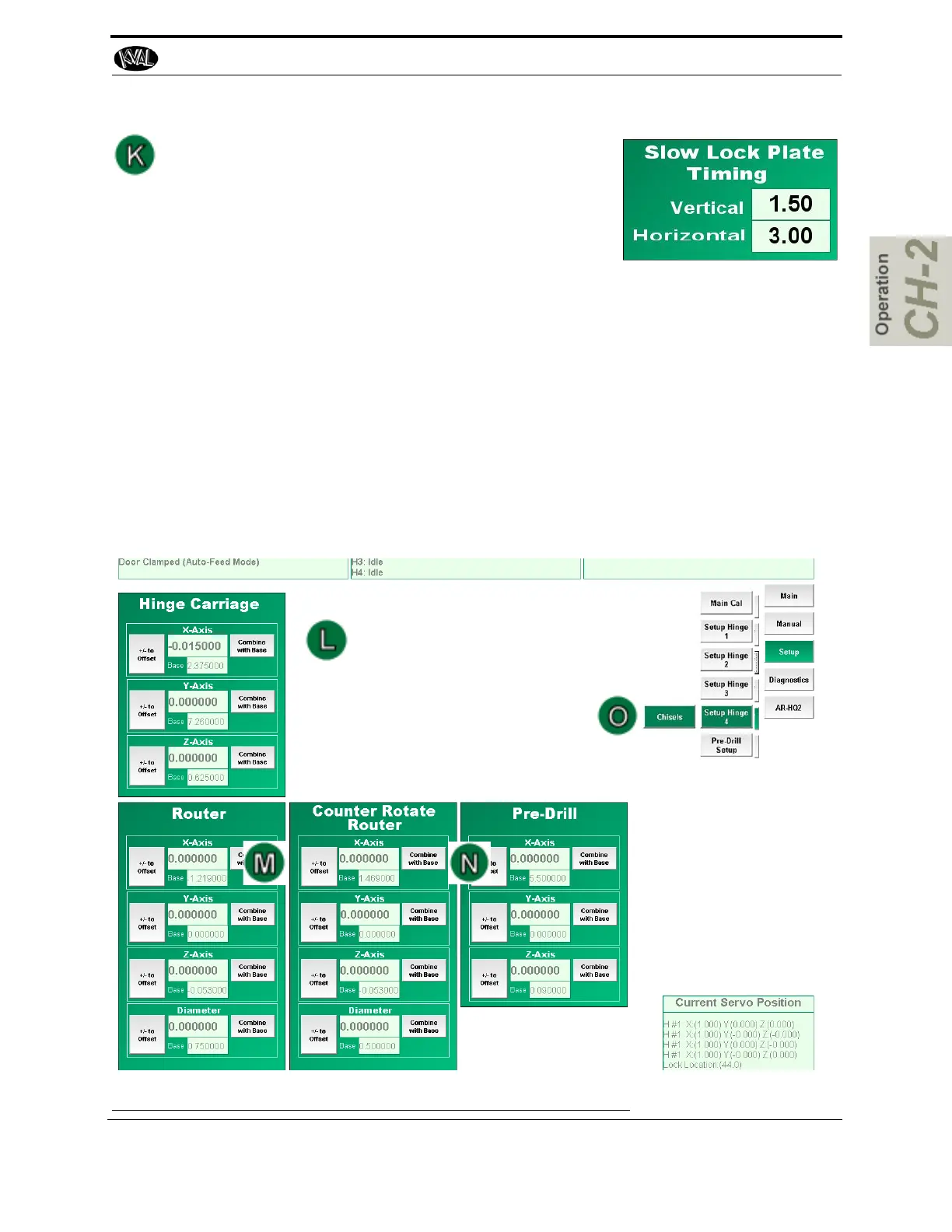

FIGURE 2- 21. Hinge Setup Menu (1 of 3)
