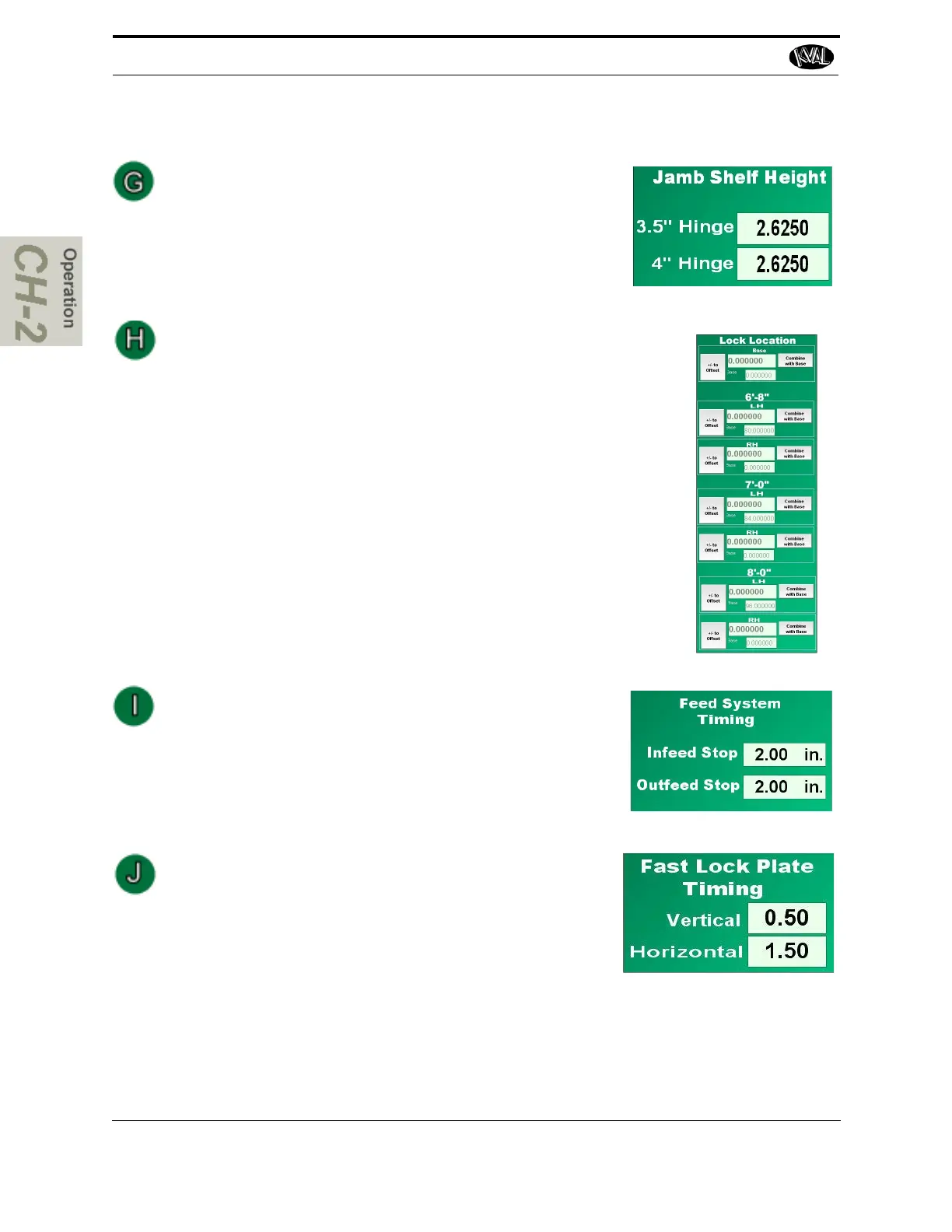

Jamb Shelf Height Adjustments
Adjusts the jamb shelf height. This parameter is usually
set once.
Lock Location Adjustments
Adjusts the lock location in the back section. Adjustments can be
made for right hand and left hand doors for 6'8'', 7'0''and 8'0'' door
sizes.
Lock Location:
Choose the desired size door (6'8'',7'0'',8'0'') or Base.
Base: Moves the lock location for both left hand and right hand
doors. This is the original reference.
LH: Moves the lock location for left hand doors only.
RH: Moves the lock location for right hand doors only.
Feed System Timing Adjustments
Infeed Stop: This is distance the clamped door is
located after the “after-infeed eye”.
Out feed Stop: This is the distance the clamped door is
located after the “before-out feed eye.
Fast Lock Plate Timing
Vertical: The amount of time, in seconds, to give the
vertical movement of the lock plate when in “Fast
Plate” mode.
Horizontal: The amount of time, in seconds, to give the
horizontal movement of the lock plate when in “Fast Plate” mode.
About the Setup Screens
KVAL 994-X Operation/Service Manual
2-44
