About the Six /Eight Shooter System
2-13
KVAL 994-X Operation/Service Manual
Option K: Eight Shooter
To attach 4" X 4" hinges to the door and jamb, an eight shooter (Option K) is integrated into the
machine. The Eight Shooter has the same method of operation as a Six Shooter, except the eight
shooter attaches a 4X4 hinge and has 2 Hoppers to deliver screws.
Eight Shooter.
Six Shooter: The Six
Shooter attaches 3
screws to the jamb and
3 screws to the door
Hoppers: Supplies
screws to Jamb and
Door
Indexing Fixture: Magnetic.
Aligns screws and attaches the
hinge to the door and jamb.
The Eight shooter attaches 4
screws to the jamb and 4 to the
door.
Eight Shooter Magnetic Indexing Fixture.
4 Jamb Screw applicators
4 Door Screw applicators

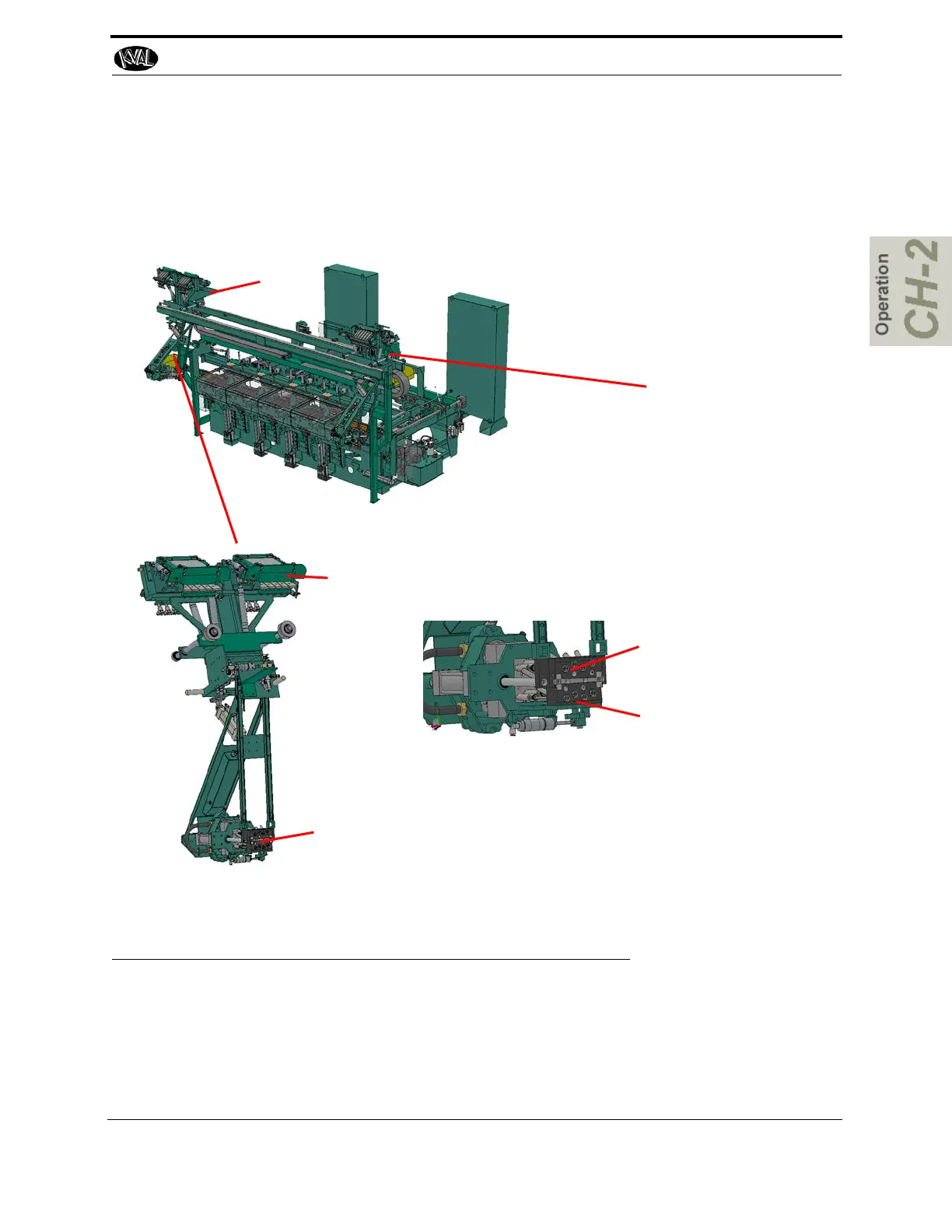

FIGURE 2- 11. Eight Shooter Parts
