Kval 994-X - Option SB: Lock Calibration Screen

Option SB: About the CNC Back Section Operator Screens
KVAL 994-X Operation/Service Manual
2-54

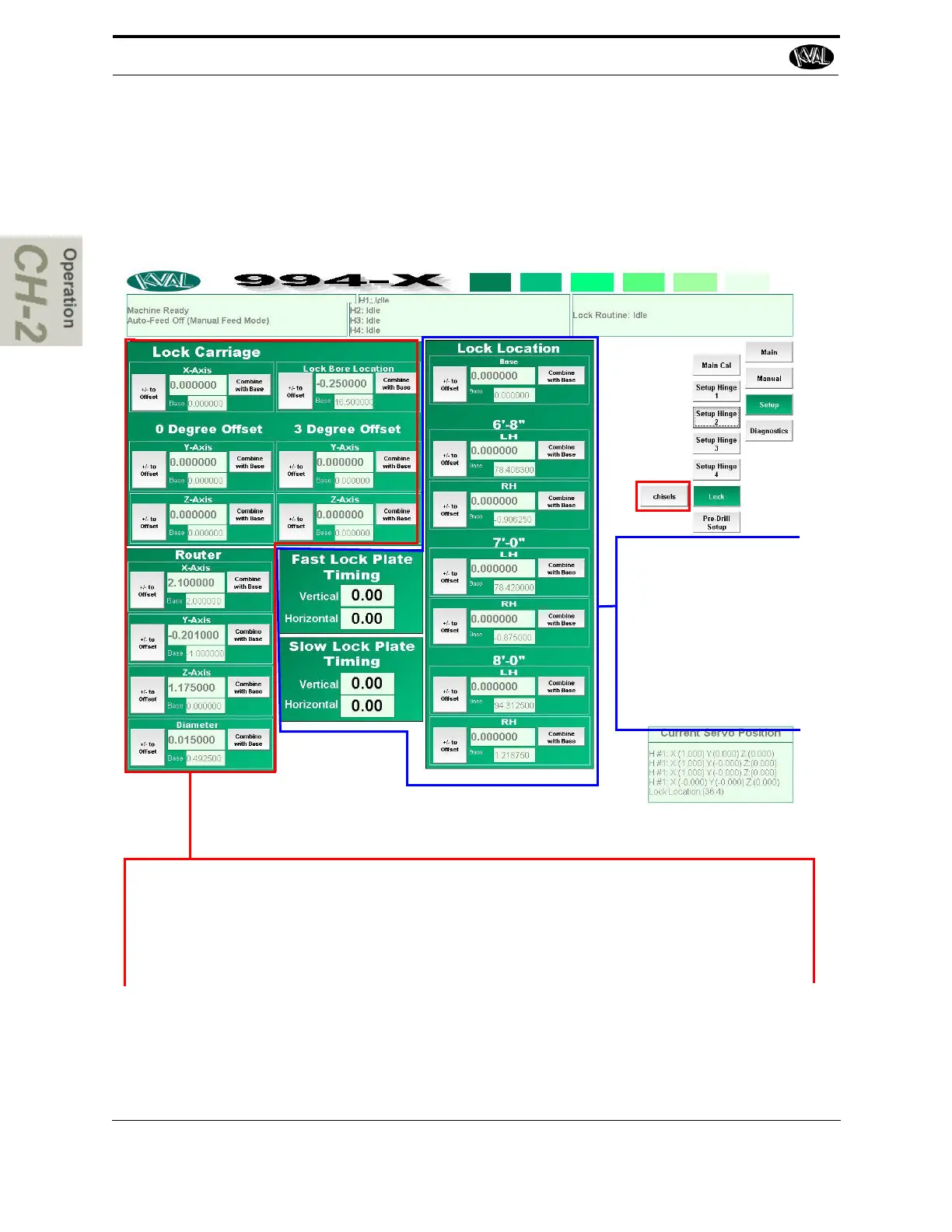

Option SB: Lock Calibration Screen
Note: This section describes the menus in the Setup Screens. For information about
performing calibration, See “Chapter 2, Calibration of the 994-X”.
The following screen is added in the CNC Back Section option.
Lock Location: See “Lock
Location Adjustments” on
page 2-44
Fast Lock Plate Timing: See
“Fast Lock Plate Timing” on
page 2-44
Slow Lock Plate Location:
See “Slow Lock Plate Timing”
on page 2-45
Lock Carriage: Calibrates the
Back Section Carriage in the
‘X, Y, and Z direction. Zero
and Three degree X and Y are
calibrated separately
Router: These adjustments
move router of the back sec-
tion in the X, Y, and Z direction.
The radius of the router cut
also may be adjusted.
Chisels:
Calibrates
the Back
Section chis-
els
