Check Specifications of the Front Section
KVAL 994-X Operation/Service Manual
3-12
Step 2: Router Calibrations
Once the Hinge Carriage is calibrated to the center, verify the Standard Router.
For dimension of the calibration cut, see “Calibration Slot Drilling Specifications” on page 3-5.
Adjusting the Router:
1. Run the Calibration Routine. See “Run the Calibration Routine” on page 3-6.
2. Check, measure, and calculate specifications of Router cut.
3. To set a new reference, go to the calibration menu and select Combine with Base.
4.
X: To move the cut to the right, enter a
positive
value. To move the cut to the left,
enter a negative
number.
Y: To move the cut to up
enter a positive
value. To move the cut to the down,
enter
a negative
number.
Z: To increase
the depth, enter a positive
value. To decrease
the depth, enter a neg-
ative value.
Diameter: The diameter menu allows
adjustment compensate for discrepancies
to the actual size of the router bit. If the
diameter is not correct, it will affect the X,Y
and Z parameters.
Enter calculations.

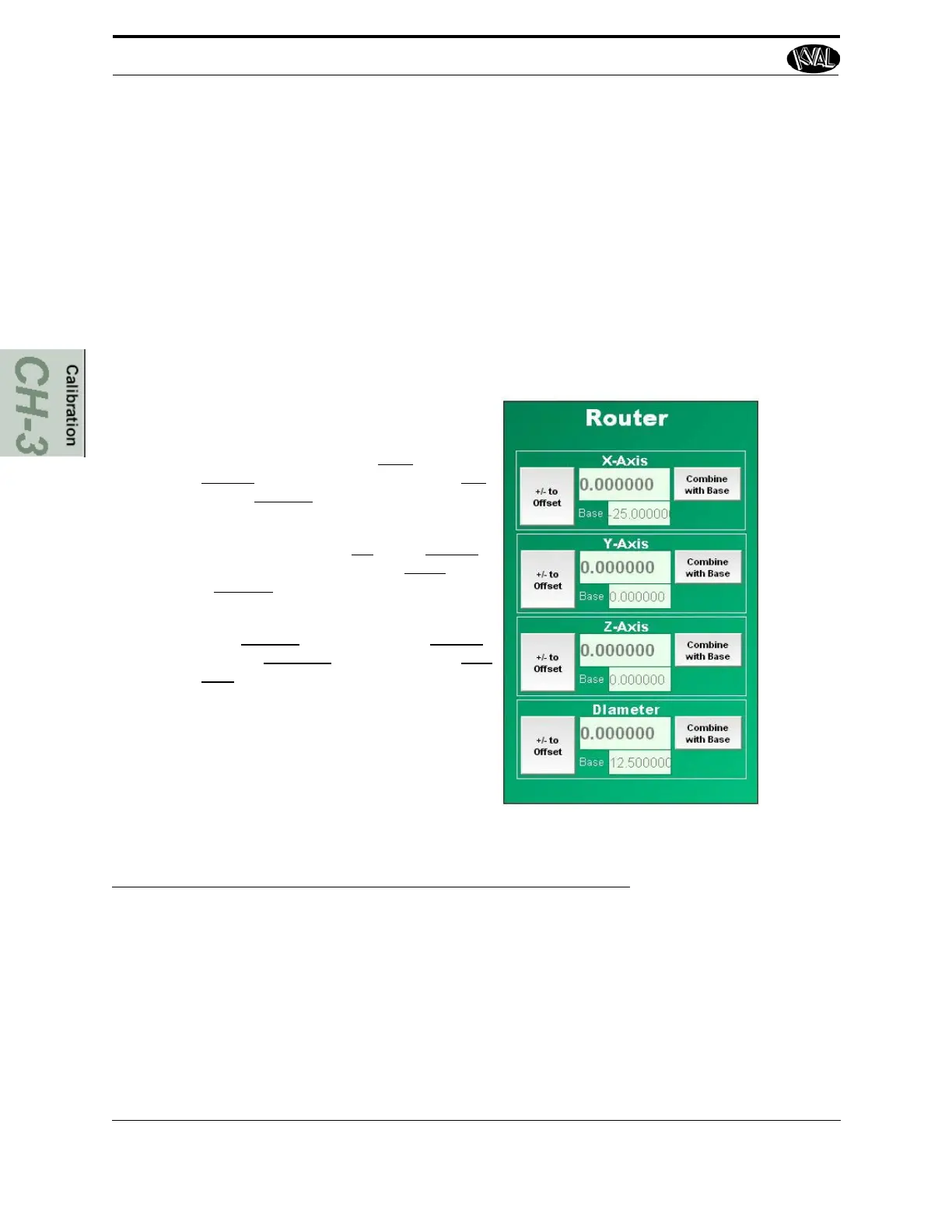

FIGURE 3- 8. Router Calibration Menu
5.
Repeat until cut is centered.
6. Select the Combine with Base button to finish.
7. Repeat until cut is centered.
8. Click “Combine with Base” to finish.
