Kval 994-X - Door;Jamb Foot Pedal

Operator Controls
2-5
KVAL 994-X Operation/Service Manual

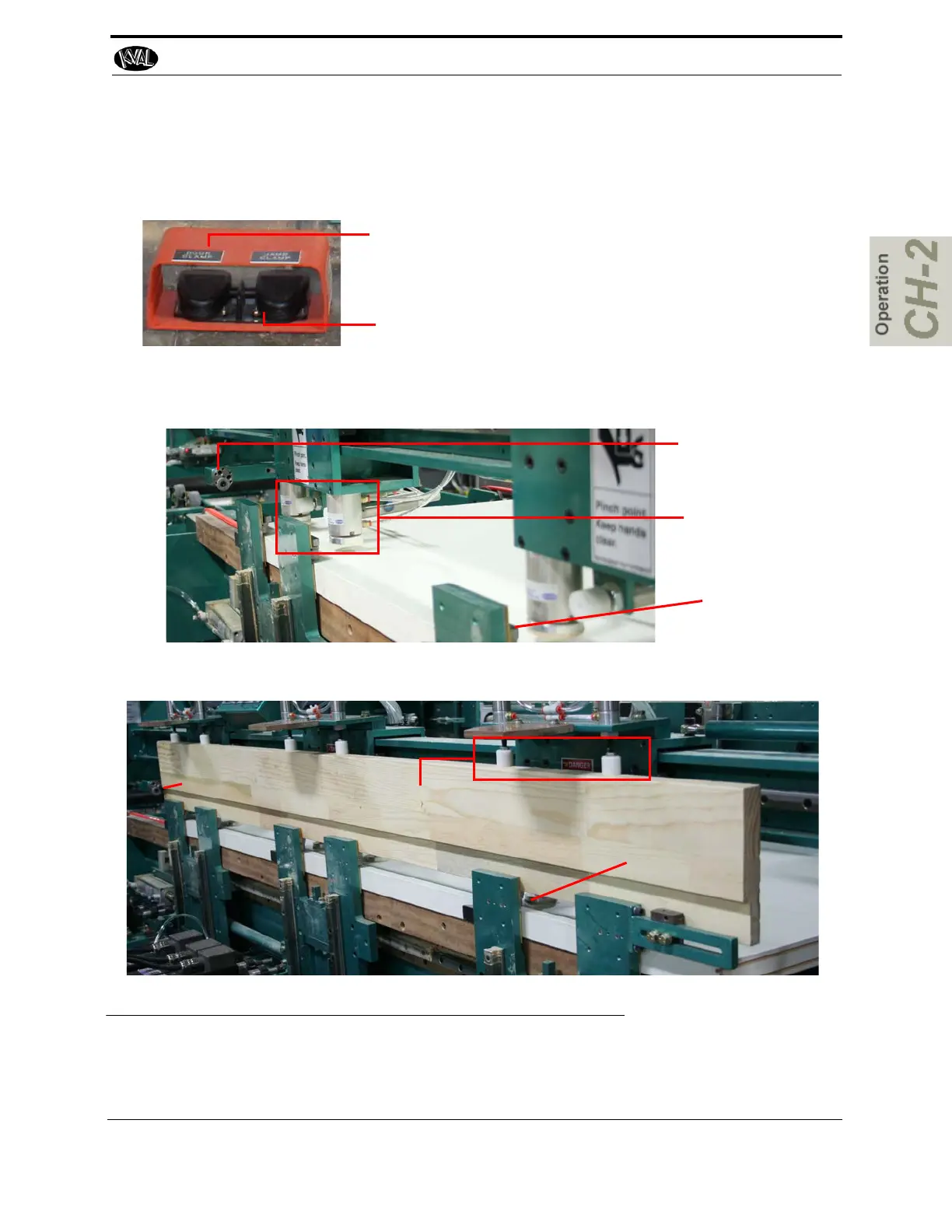

Door/Jamb Foot Pedal
The Foot Pedal adds easy control to clamp and unclamp the Door and the Jamb.
Jamb Clamp: The ‘Jamb Clamp’ foot pedal clamps the jamb in both
the auto and manual modes.
Door Clamp: Push the 'Door Clamp' foot pedal clamp and then
un-clamps the door after each cycle of operation, when the
machine is in the manual mode
Press once to clamp and press again to un-clamp.
Jamb Clamps: Two Clamps per Head. Manually clamped
Door Clamps: Two Clamps per Head. Can be Auto clamped and Manually clamped
Jamb Ledge
Jamb Stop
Door Clamps
Jamb Ledge
Jamb Stop
Jamb Clamp
FIGURE 2- 4. Door and Jamb Clamps
