Replacing Tooling in the Front Section
5-21
KVAL 994-X Operation/Service Manual
Replacing Tooling in the Front Section
This machine is a powerful electro-mechanical
motion control system. If servicing this machine fol-
low all safety guidelines Failure to do so can result in
damage to equipment and/or serious injury to person-
nel.
Caution
Replacing Bits in the Front Section
This section describes the steps to change the pre-drill bits, router bits, and chisels in the heads on
the front section., shows the locations of the replaceable parts inside the heads
Pre-Drill:
Drills pilot holes for
insertion of screws on
the jamb and the door
Router: Routs the
hinge pocket on the
jamb and the door
Counter Rotate
Router:
Router
minimizes chip outs
on door and Jamb
Pre Drill:
Router:
Standard
Option CR
Standard
Option CH
Counter Rotate Router:
Router: Standard
Chisels: Two chisels per assembly. Square
off Jamb and Door hinge cuts.

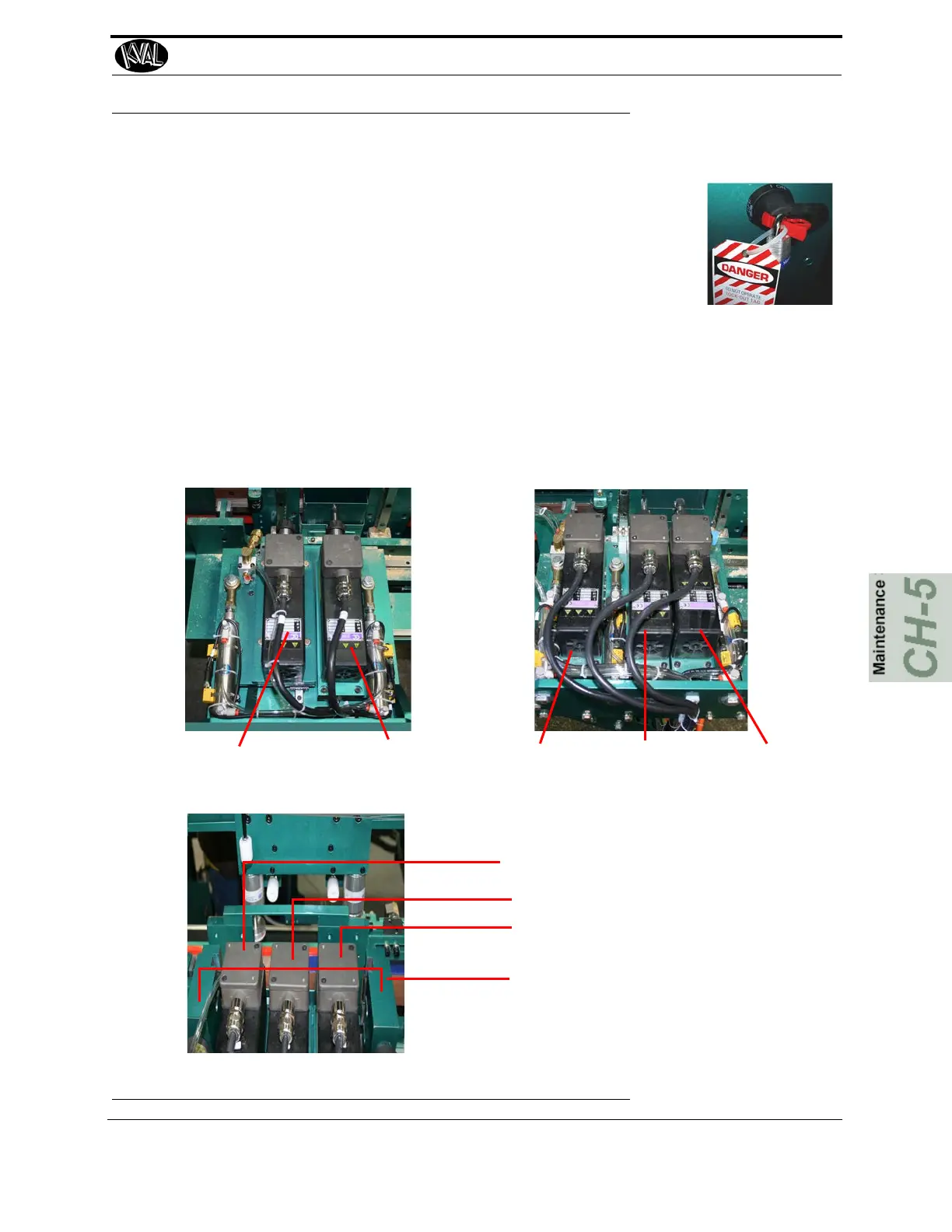

FIGURE 5- 18. Location of Bits in the 990-H Heads
