Calibration of the Back Section
3-19
KVAL 994-X Operation/Service Manual
Vertical:
If the vertical time is not making it up or down, before the horizontal move starts, enter a larger
number. This number is in seconds. If there is a delay before the horizontal moves, enter a smaller
number in this box. Continue entering numbers until timing is matched.
Horizontal:
If the Horizontal time is not making it left or right, before the vertical move starts, enter a larger
number. This number is in seconds. If there is a delay before the vertical moves, enter a smaller
number in this box. Continue entering numbers until timing is matched.
Option SB: CNC Back Section Calibration
This section describes calibration screens for the optional CNC back section.

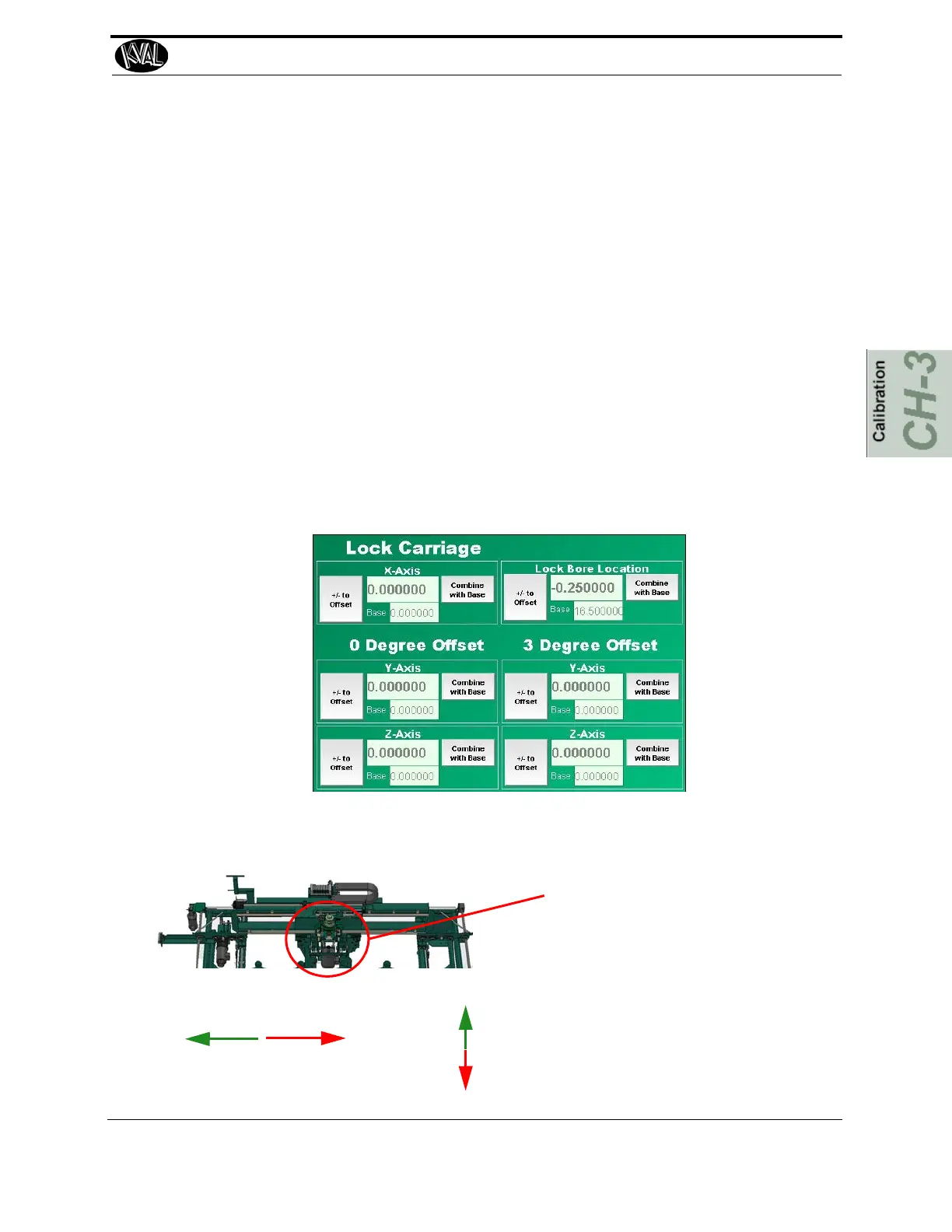

Lock Carriage
Calibrates the Back Section Carriage in the ‘X, Y, and Z direction. Zero and Three
degree X and Y are calibrated separately
Enter a positive or negative number to move the tool in the desired direction.
X
Y
Z: Positive number
moves tools in, negative
number moves tools out
Positive
Number
Negative
Number
Positive
Number
Negative
Number
Moves Tool Set
