Drill assemblies are
mounted onto the lock
boring section for
drilling left hand and
right hand doors drive-
in ball catches. When
selected, the proper
drill automatically
pivots in to drill into
the top of the door.
Note, minimum door
width for drilling is
18"

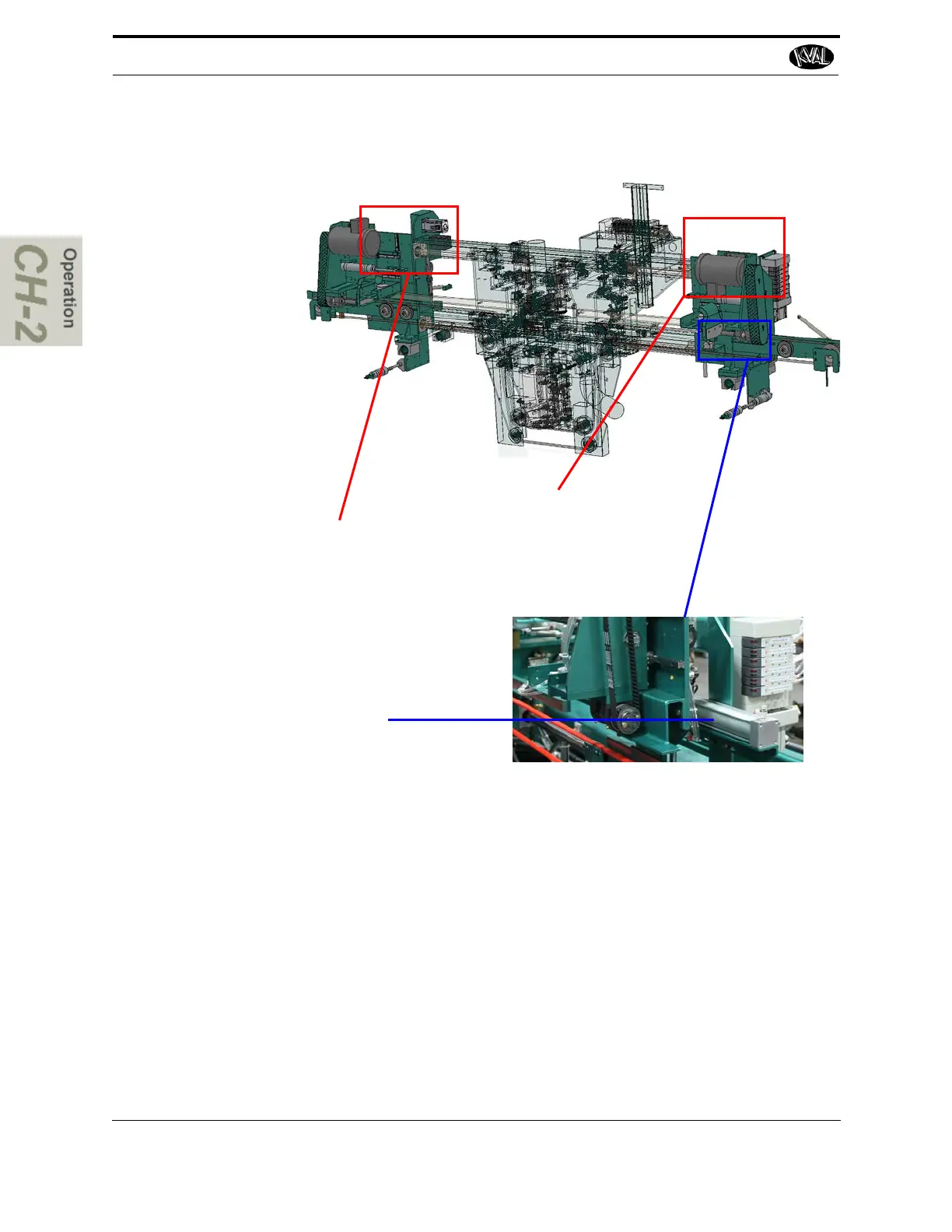

Ball Catch Motor and Drill
Drills ball catch top edge
(Out-Feed) on LH Door.
Adapts to 6’ 8'' and 8’ 0''
doors.
Ball Catch Motor and Drill
Drills ball catch top edge (In-
Feed) on RH Door
Ball Catch Cylinder: Moves
motor assembly to 8’ 0'' or 6''
8'' door position.
