About the Six /Eight Shooter System
2-17
KVAL 994-X Operation/Service Manual
Driver Assembly
The Driver Assembly is the workhorse of the Six/Eight Shooter. The assembly automatically
receives, aligns, and drives the screws into the door and the jamb.
Split Shells X6:
Receives 6 screws, straight-
ens, and aligns them.
Hinge Indexer X2:
Factory set to align
hinge.
Magnets:
Four Magnets hold Hinge
for Application.
Index Spacers X2:
Factory set to align hinge.
Screw Receiver Tubes:
These tubes receive the
screws from the hopper by
way of plastic tubes
Latch Arm:
Latches to H Block
to secure in place.
Latch Arm Cylinder:
Moves latch arm in and out
of position
Hydraulic Motor
Gearbox:
Geared to drive 6
screws simultane-
ously
Chucks X6:
Holds 6 screws
aligned to the Door
and the Jamb.
Hinge Applicator:
Location to attach
Hinge
Turret to Adjust Depth:
Adjustable stops to set
the depth of the screw
drivers. Used with the
Forward Limit Switch.
*Forward Stop
Limit Switch
*
Reverse Stop Limit on
other side
Plunge Cylinder:
Moves the screw
drivers into place

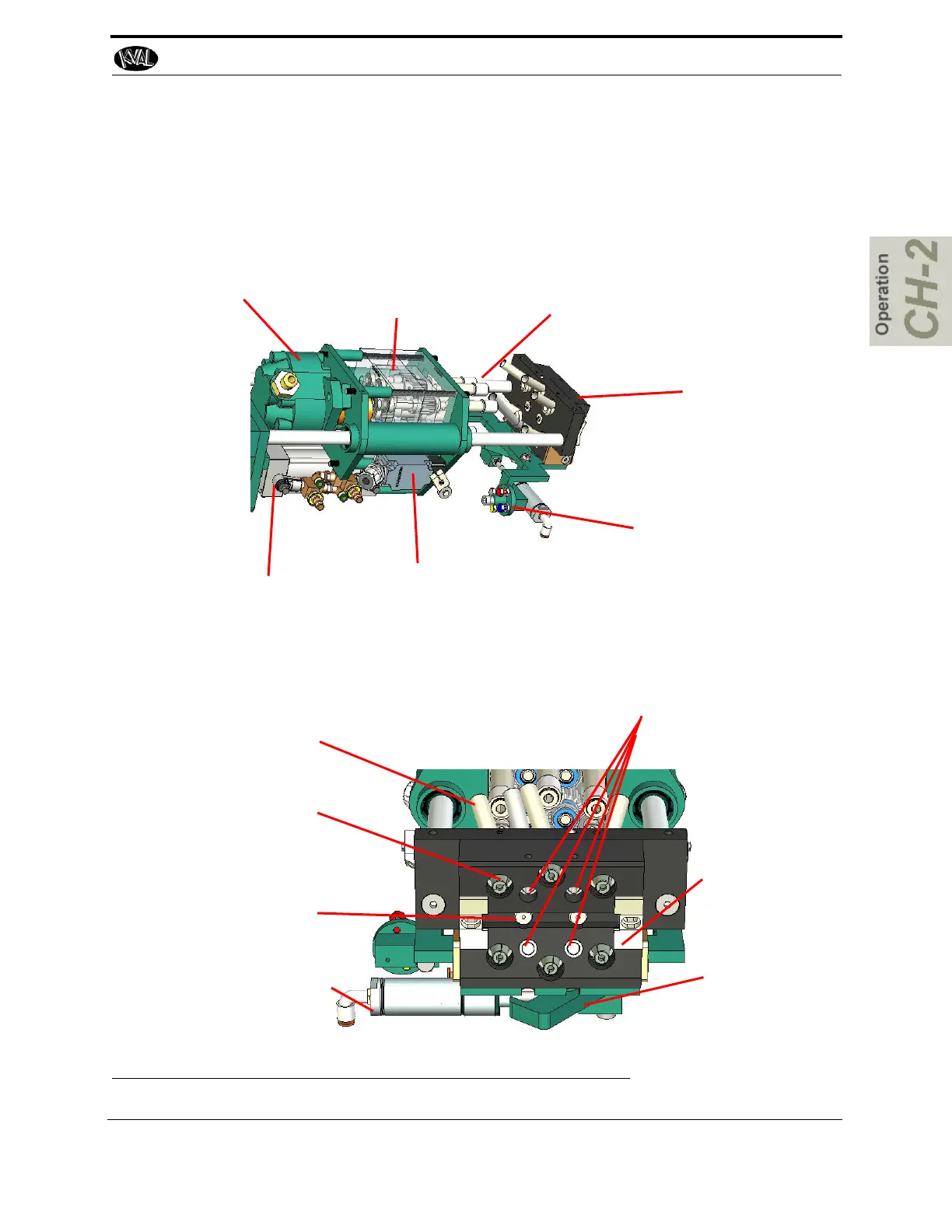

FIGURE 2- 14. Six Shooter and Gear Box Call-Outs
