Kval 994-X - Opt SB: Back View of Rear Section

Back Section:
2-23
KVAL 994-X Operation/Service Manual
Opt SB: Back View of Rear Section
Opt SB: Adds a CNC Backsection with Corner Squaring The 994-X system combines very high
quality hardware detailing, with high speed productivity. Unique features include computer con-
trolled ball screw movements for all router and chisels, complete with square lock face plates.
Backsection will have the ability to machine a face plate at both "0" and "3" degree.

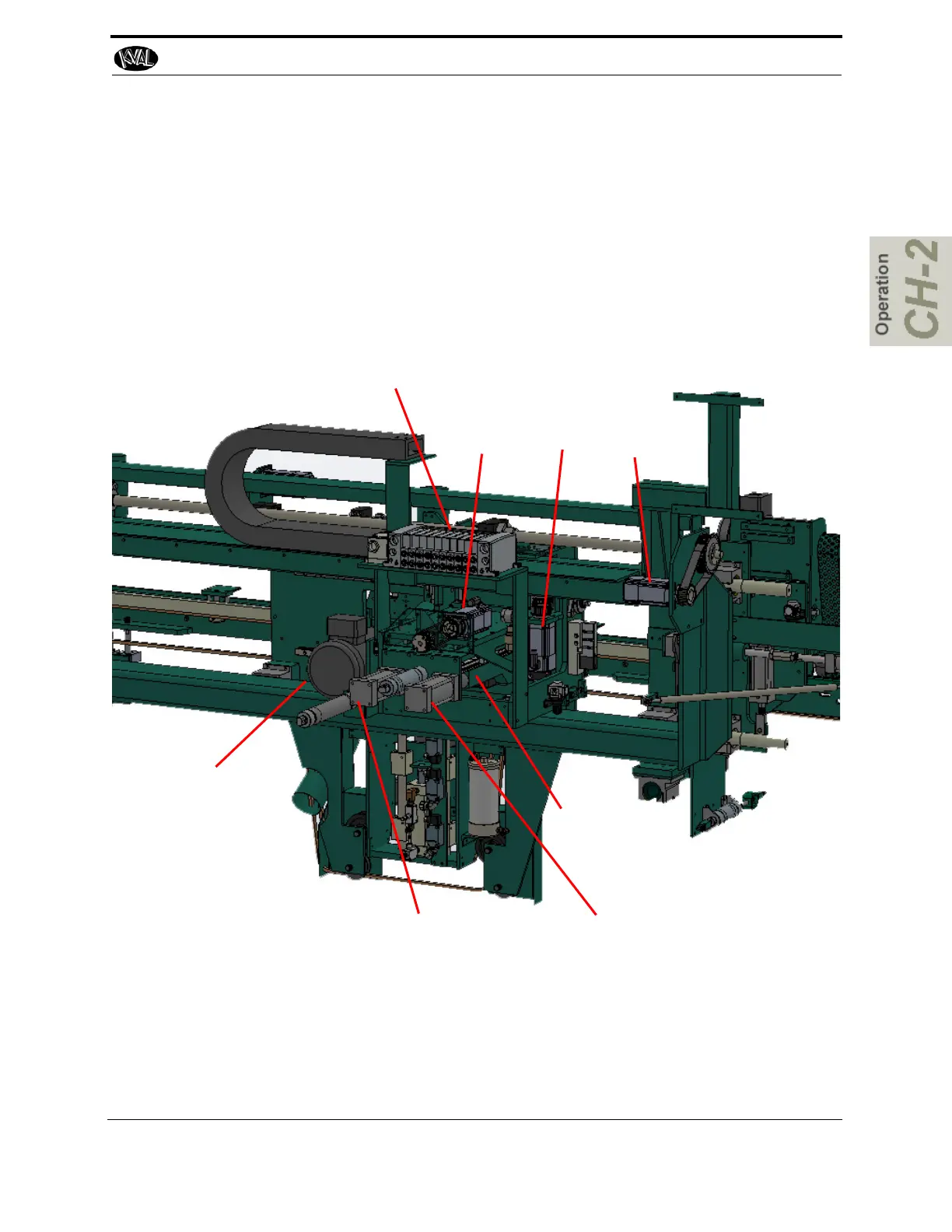

Bolt Drill Motor:
Machines lock
plate on the side of
the door
Ball
Screw:
Left Lock Plate
Chisel Cylinder (:
Squares the edge
of the lock plate.
Right Lock Plate
Chisel Cylinder:
Squares the edge
of the lock plate.
Z Axis
Servo
Motor
Back Section Valve Bank:
Y Axis
Servo
Motor
X Axis
Servo
Motor
