The figure below shows a 994X with a Six Shooter (Option A) and a standard Hinge Carriage
(Router and Pre-Drill Motors). For machines with an Eight Shooter (Option K) and a Counter
Rotate Router (Option RC), see Page 2-13.
In-Feed
Out-Feed
Front Section
Hopper
Back Section
Hinge Carriage
#1
Six
Shooter
Valve Bank #2
Valve Bank #1
Lock Plate
Assembly
Electrical Panel # 2
Electrical Panel # 1
Hydraulic System
6-Shooter
Valve Bank #3
Air Input: Fil-
ter /Lubricator
Lock Bore
Assembly
Hinge Carriage
#2
Hinge Carriage
#3
Hinge Carriage
#4
Opt BC: Ball Catch
Motor X2
Opt K:
Eight
Shooter
Hydraulic System
8-Shooter

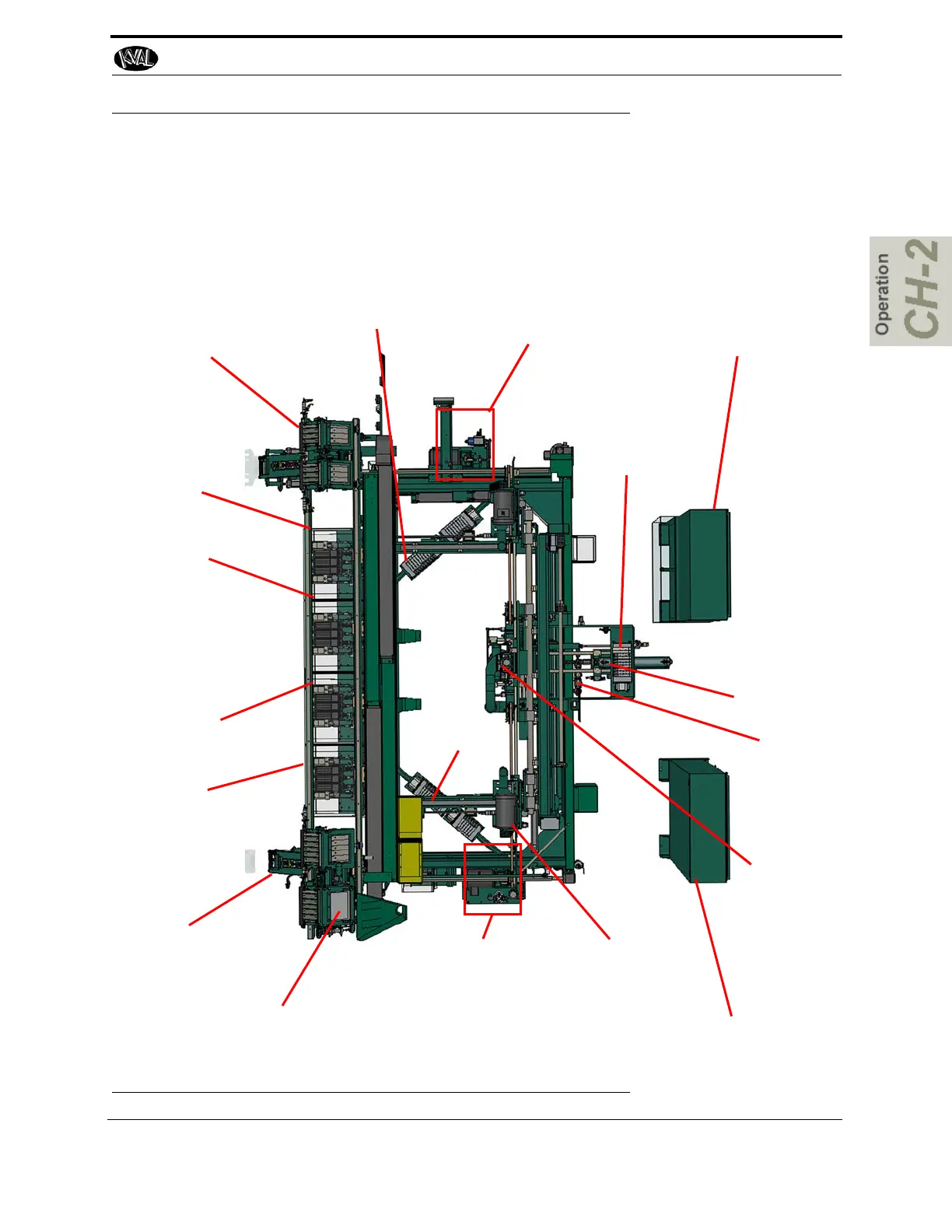

FIGURE 2- 1. Identification of Key Assemblies of 994-X
