In-Feed Section
KVAL 994-X Operation/Service Manual
2-6
In-Feed Section
• Door is input from previous machine
• Includes automatic door width adjustment
• Door is feed into the machine for processing
• The door is automatically positioned while the operator loads the jamb and clamps
them to secure them.
In-Feed System:
Door Enters Machine here. Sensors triggered and width is adjusted to door
Hydraulic Tank for
8-Shooter:
Sets and Lifts Eight
Shooter out of
Hinge pocket
Feed Motor:
Drives the
Door through
the machine.
Door Stops
Opt N: Weather
Strip Brackets:
Keeps weather strip
on jamb away from
machining process.
Not shown: See “Opt N:
Weather Strip Brackets”
on page 2-7.
Door Input
Feed Belt:
Drives the
Door through
the machine.
Opt K: Eight Shooter

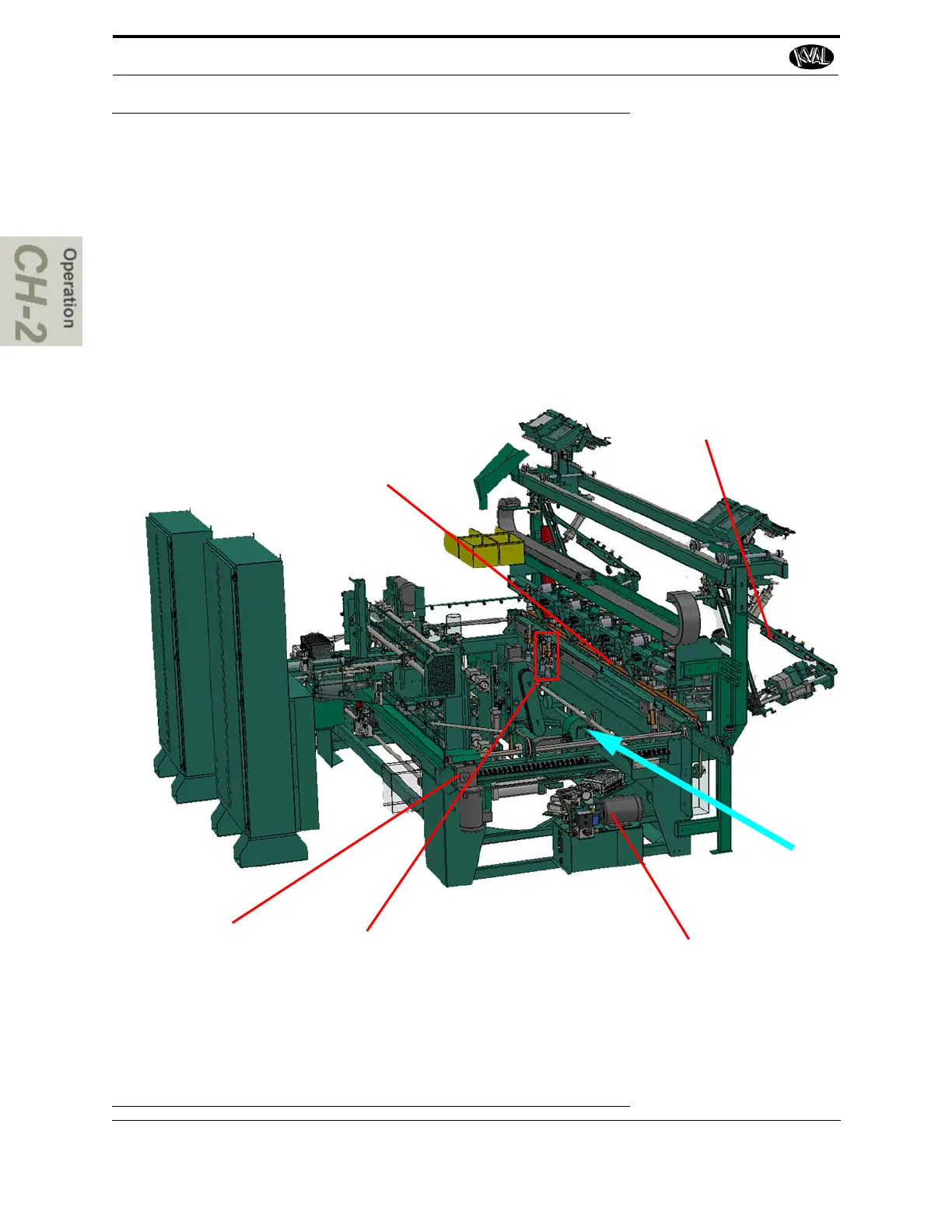

FIGURE 2- 5. Key Assemblies on the In-Feed Section
To Next Page
