Out-Feed:
KVAL 994-X Operation/Service Manual
2-26
Option O: Air Blow Off
Compressed air is automatically triggered as the Door leaves the machine. Dust and debris are
blown away from the door. The air will stop after the door exits the machine.

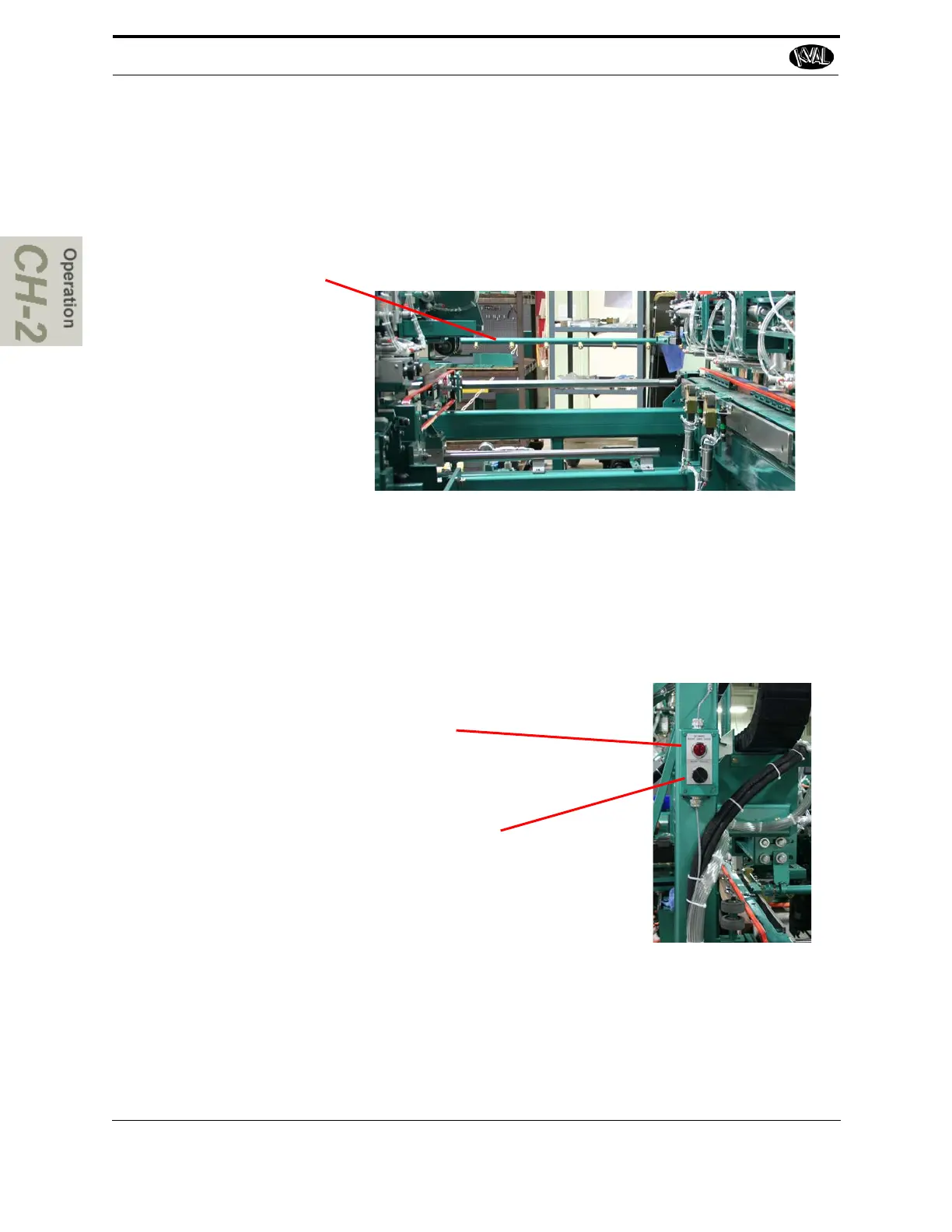

Compressed air is directed
at the door face as it exits
the Out-Feed.
Option IL: Left Hand / Right Hand Door Indicator
Light is be mounted on the out-feed end of the 990-F4 that can be seen by the 700-C Assembly
Table Operator. The light will be on when the door in the 994-X is being machined as a right hand
door and off for a left hand door.
Incoming Right Hand Door:
Red Light will be on if a Right Hand door is exit-
ing the machine. It will be off if the door is a Left
Hand door.
Reset 700-C:
If an issue occurs with the 700-C, press the reset
button at this centrally located position.
