Location of Sensors on 994-X
KVAL 994-X Operation/Service Manual
6-24
X Axis Sensors Front Section

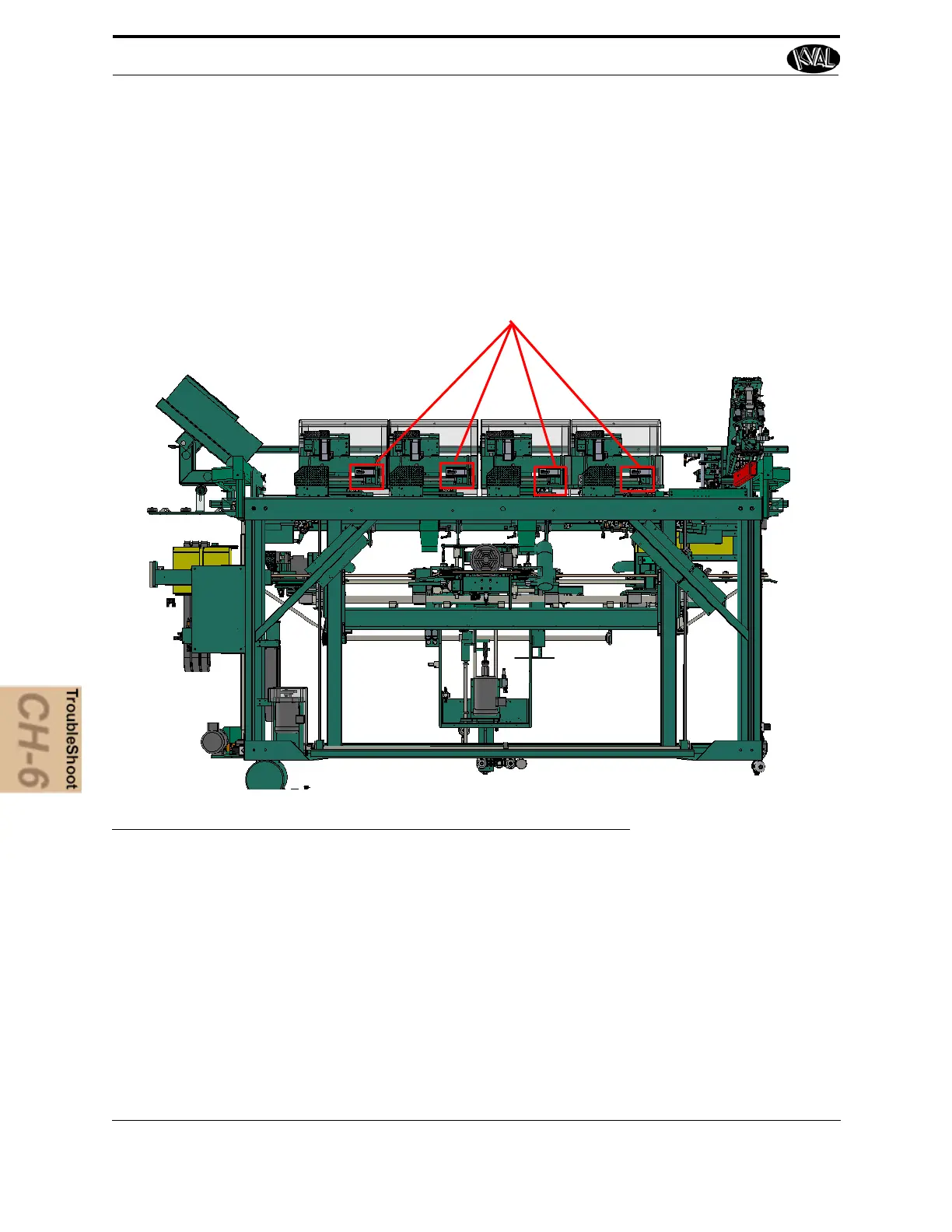

Figure 6- 38 below, shows the placement of the X-Axis sensors. The X-Axis sensors sets the max-
imum limits in positive and negative positions and also sets the home position. The sensors are
located underneath the Heads
X-A xis Hom e Eye
X-Axis Forward Crash Eye
X-Axis Reverse Crash Eye
FIGURE6- 38. Bottom View of 994-X location of X Axis Sensors
