Option: Securing Split Jambs
This option includes two 1/4" crown staple guns that are mounted onto the jamb clamp brackets.
While clamped in the machine, staples will be driven into the back side of the split jamb to keep
the male and female together. This will keep the split jamb secure when feeding to the 700C.
The staple guns are fired with a single valve that is interlocked with a safety switch to disable the
staple guns unless there is a jamb clamped in the machine.

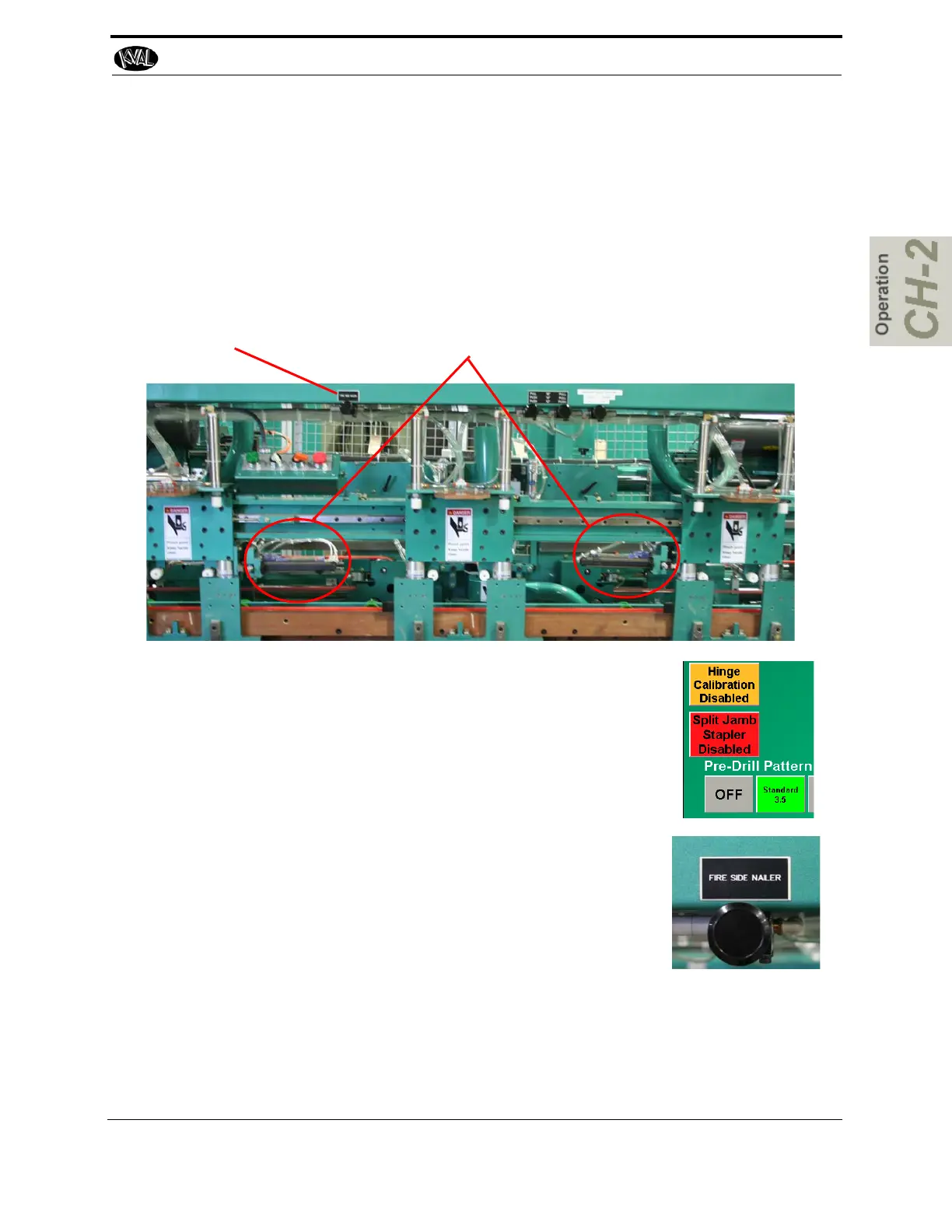

Staplers
For full process information, see “Quick Start” on page 2-31 .
To Use this Function:
1. Enable by selecting the Split Jamb Stapler enable dis-
able button.
2. If not already done so, load the male split jamb into
the female slot of the jamb
3. Load jamb assembly into machine.
4. During process, press the Fire Side Nailer button.
Note: The nail gun will not fire unless the enable button
is activated on the Operators Screen and the safety
switches are activated by the male split jamb
Fire Side Nailer Button
