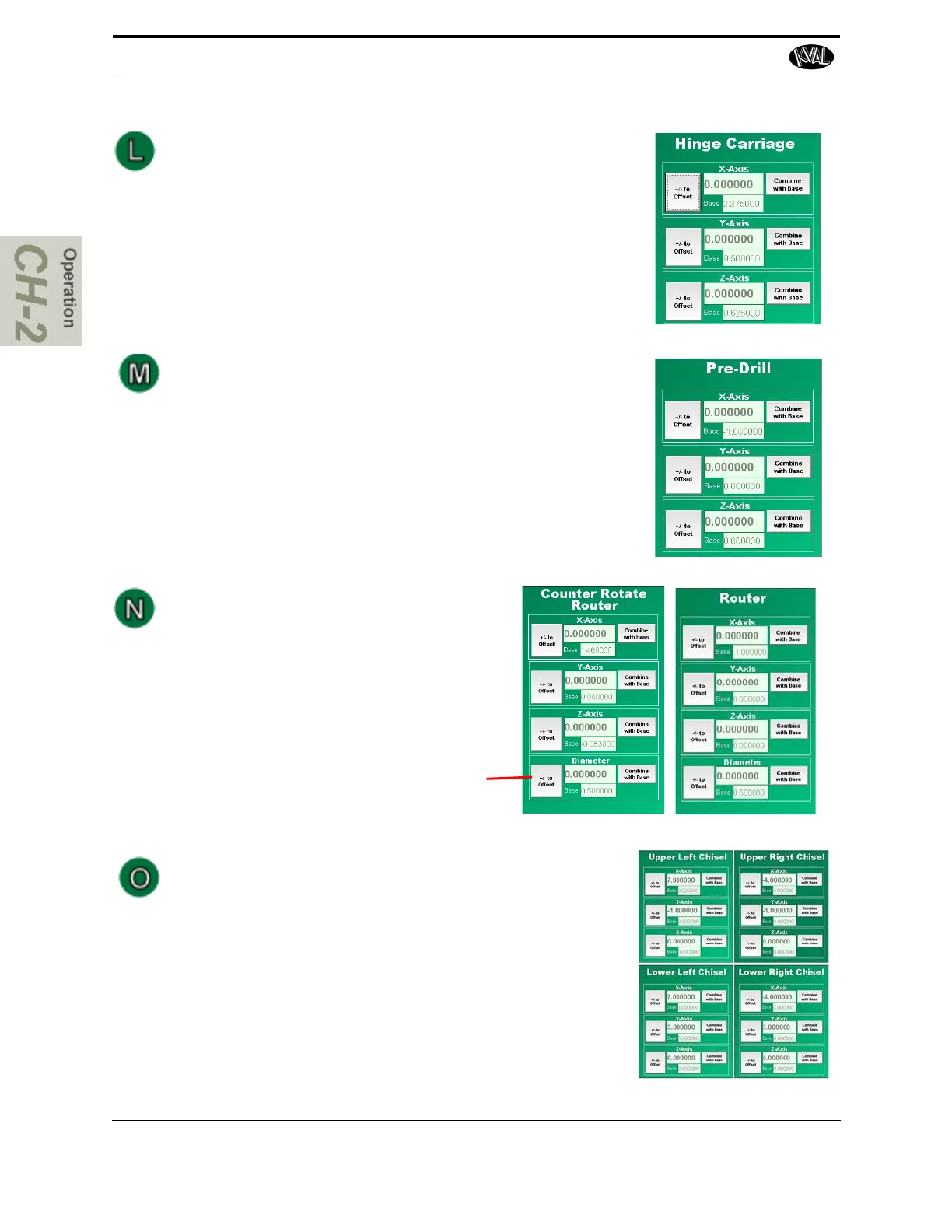

Hinge Carriage Adjustments
Hinge Carriage Location: This calibration number adjusts
the position of the hinge carriage in the X,Y,and Z direction.
Pre-Drill Adjustments
Pre-Drill: These adjustments move the point-to-point drill
in the X, Y, and Z direction.
Router Adjustments
These adjustments move routers in the X,
Y, and Z direction. The radius of the
router cut also may be adjusted.
Use this to compensate for minor changes
in tooling during calibration.
Option CR:
Chisel Adjustments
These adjustments move Chisels in the X, Y, and Z
direction. Use this to compensate for minor changes in
tooling during calibration.
