'X' Zero
Point
'Y' Zero
Point

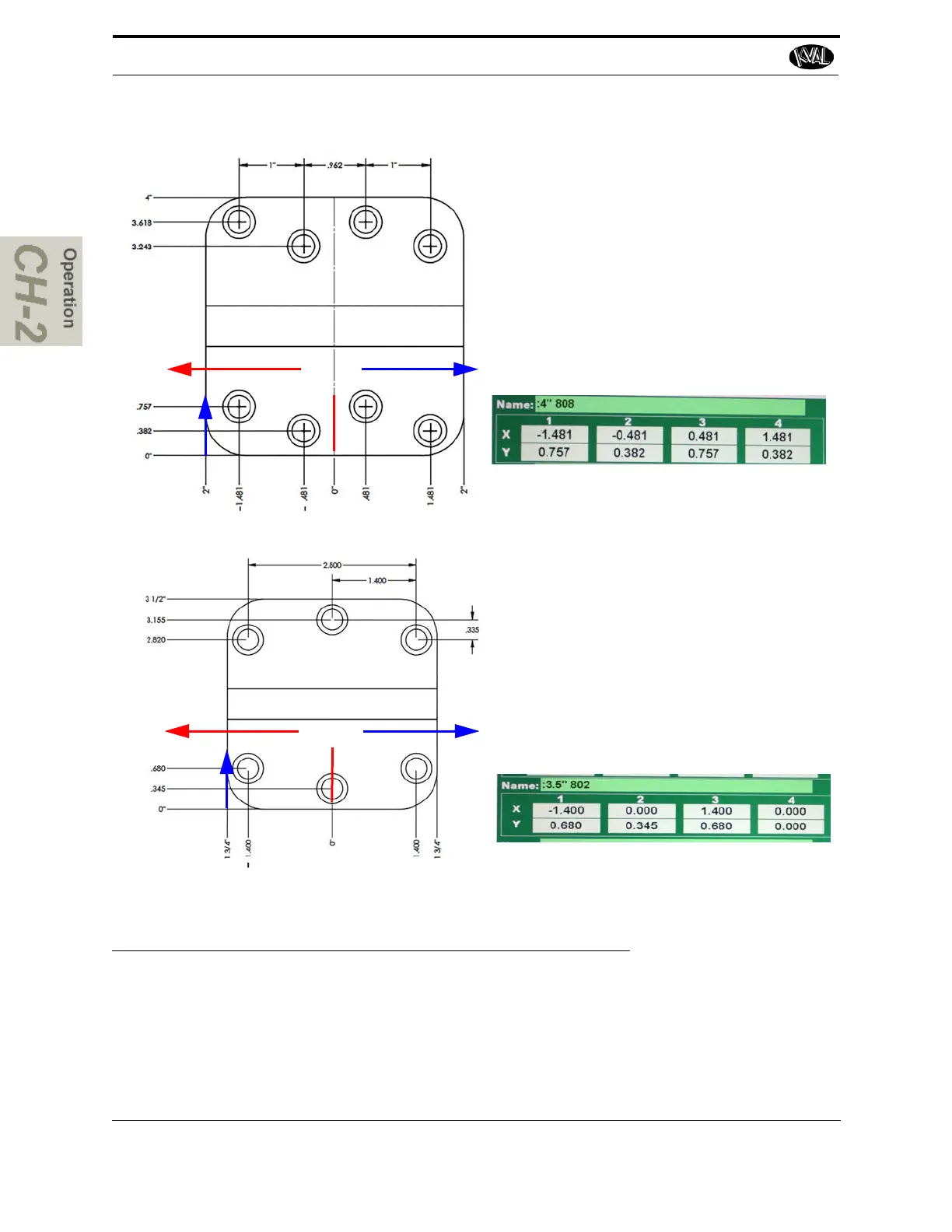

Sample of 4'' Hinge Dimensions
'X' Zero
Point
'Y' Zero
Point
Sample of 3.5'' Hinge Dimensions
About the Setup Screens
KVAL 994-X Operation/Service Manual
2-48
.
FIGURE 2- 23. Pre-Drill Samples
