Leibinger JET3 Series - Printhead Functions; Jet Monitoring - Ink-Flow-Sensor Active; Figure 73 Printhead Tab

Page 164 Job Editor Group 8
Release 2.02 JET3 Series
7.4.3 Printhead functions
On the <Print head> tab the following functions are available:
 Ink-Flow-Sensor active
 Piezo Test
 Jet Adjust
 Extern Ink on/off active
 Charge Test
 Ink on/Ink off
 Detector Test

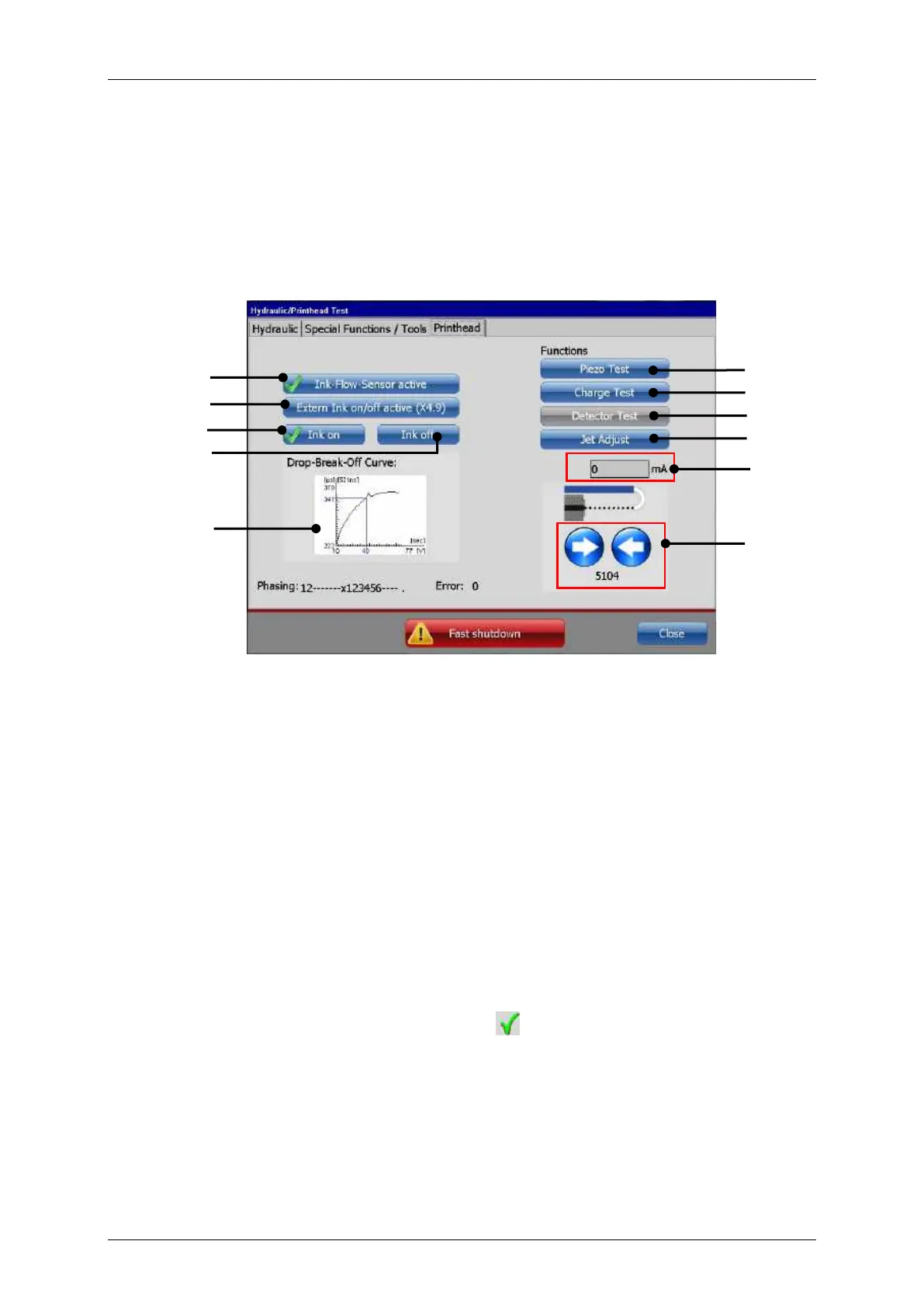

Figure
73
Printhead tab
1 – <Ink-Flow-sensor active> Button
6 – <Charge Test> Button
2 – <Ink on> Button
7 – <Detector Test> Button
3 – <Ink off> Button
8 – <Jet Adjust> Button
4 – <Extern Ink on/off active> Button
9 – Current during open/close nozzle
5 – <Piezo Test> Button
10 – Open/Close nozzle stepwise
6 – <Charge Test> Button
11 – Display <Drop-Break-Off-Curve>
7.4.3.1 Jet monitoring - Ink-Flow-Sensor active
The ink jet monitoring provides highest operating reliability due to the additional
monitoring of the ink backflow. The full automatic monitoring turns off the ink jet as soon
as the ink backflow is interrupted. The nozzle seal will be closed automatically and head
impurities are therefore prevented.
By pressing the button <Ink-Flow-Sensor active> (1) the jet monitoring is turned on or
off.
An activated jet monitoring is designated by a on the button.
