Leibinger JET3 Series - Job Administration Basics

Group 8 Job Editor Page 85
JET3 Series Release 2.02

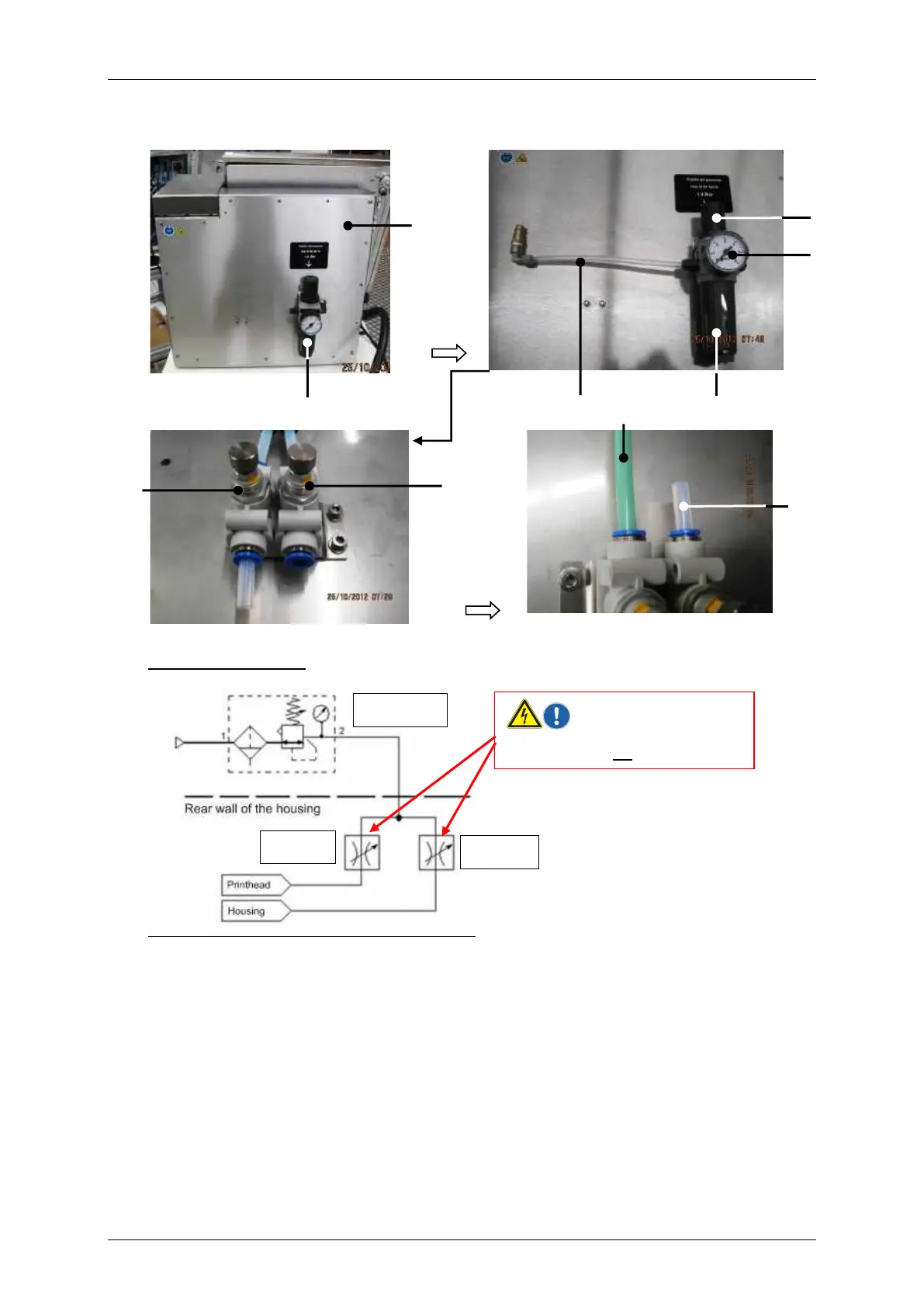

Figure
28
Assembly of the external print head ventilation
Outside
Inside
Connection diagram:
1 – rear panel of the housing
3 – Supply air hose
2 – pressure regulator valve
4 – Throttle valve for the head ventilation
2.1 – adjusting knob
5 – Throttle valve for the housing ventil.
2.2 – manometer
6 – Hose for the print head ventilation
2.3 – Condensate container (cartridge)
7 – Hose for the housing ventilation
1
2
3
2.1
6
7
2.3
2.2
5
4
60 l/h
60 l/h
1,4 Bar
Both of the throttle valves are adjusted
exactly and should not be changed!
