Page 82 Job Editor Group 8
Release 2.02 JET3 Series
Some buttons may indicate their current status:
Button caption
greyed out:
The button is disabled at the moment. The reason for this may be a
functional one (the command is not enabled during operation) or it
be caused by an interfering parameter setting.
Button is displayed
blue-grey:
The button is activated and the command is carried out at the
moment.
Status indicators or display fields
A status indicator shows a status or a position. That may be the position of a print object
(e.g. x-y indicator) or the current status of a printer component (e.g. the diaphragm position in
the pressure tank). An indicator that is combined with arrow keys is also referred to as “display
field”. A display field may not only show the current value but also can be used for inputs.
INFORMATION
The functionality of the user interface corresponds to the Windows™-standard
procedures.

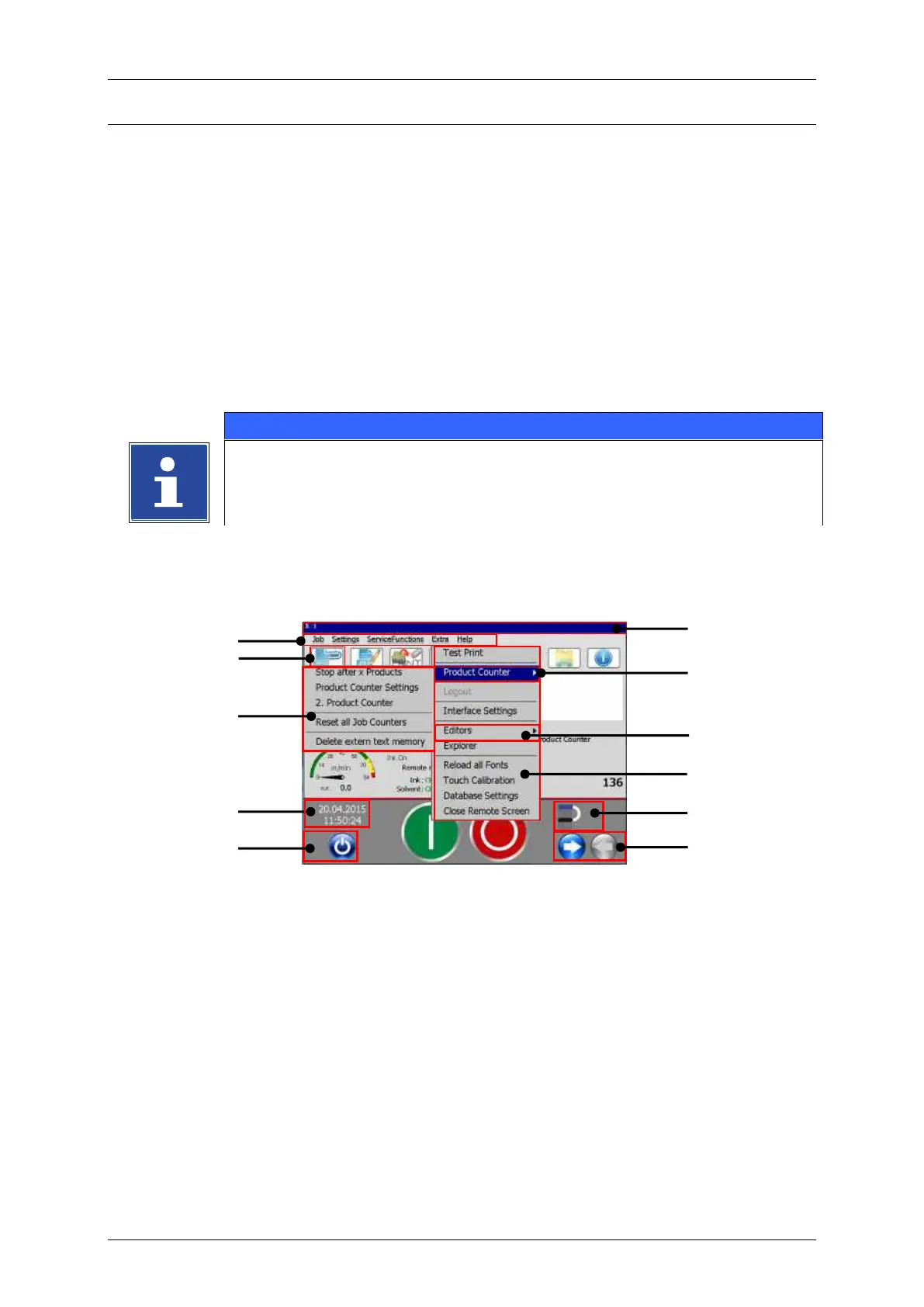

Figure
26
Menu layout 1
1 – Menu bar
6 – Option in drop-down menu
2 – Direct button (shortcut)
7 – Drop-down menu
3 – Submenu
8 – Status indicators
4 – Title bar
9 – Buttons
5 – Command in drop-down menu
1
2
3
5
6
7
8
4
9
8
9
